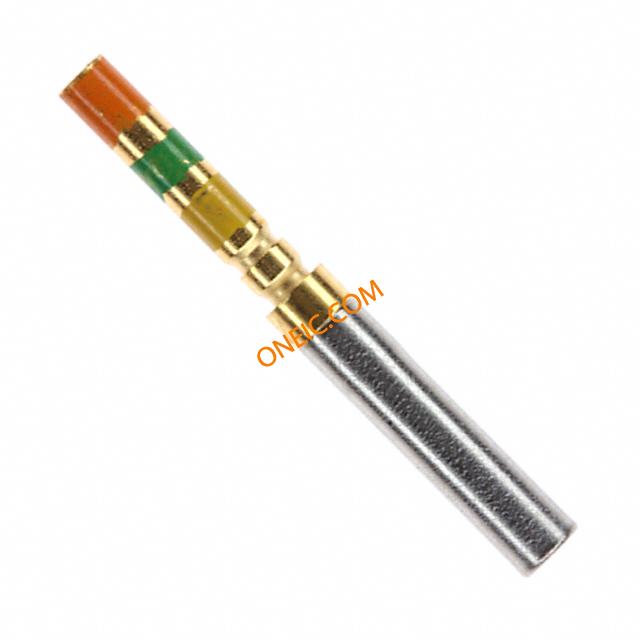

204351-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts D-SUB SKT 22-28AWG AMPLIMITE - Aerospace & Military CONN SOCKET 22-28AWG CRIMP GOLD Contact female crimp 28-22AWG Amplimite Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To WireSocketContact Size = 22Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT, SOCKET, CRIMP, 28-22 AWG, Connector;Socket;28-22AWG;Crimp;0.054in.(Max.);GoldOverNickel;22 TE Connectivity AMPLIMITE 90 Series系列 尺寸22触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 22 AWG SZ 22 SOCKET CONTACT |
| 分类 |
商业参数
| 零件号别名 | M39029 M39029/57-354 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
| 抗辐射加固 | No | 资质认证 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 输出高/低电流 | No | ||
机械参数
| 深度 | 1.57 mm | 间距 | Not Required mm |
| 长度 | 13.16mm | 重量 | 0.005 |
| 直径 | 0.76 | 材料（通用） | Passivated Stainless Steel |
| 包装方式 | Bulk | 导线线规 | 28-22 |
| 接触端类型 | Orange, green, yellow | 端接方式 | Crimp |
| 触点形式 | Machined | 触点尺寸 | 22 |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Not Required |
| 总长度 | 28-22AWG | 包装数量 | Loose Piece |
| 主要材料 | Copper Alloy | 导线端接方式 | Crimp |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件尾部长度 | 22 |
| 接触件端接 | Crimp | 绝缘直径 | 1.38 [.054] Max. |
| 触点材料 - 配合 | Gold | 线规或范围 - AWG | 0.08-0.40² [28-22] |
产品信息
| 备注 | Insertion/Extraction Tool No. 91067-1 (Military No. M81969/1-04) is used to inst | 类型 | Signal |
| 连接器性别 | SKT | 系列 | 90 |
| 制造商全称 | AMP | 产品子类型 | Contact |
| 端口数 | 1 Port | 其他规格 | Wire/Cable |
| 设备部件号 | M39029/57-354 | 适用产品/相关产品 | :AMPLIMITE 90 Series Connectors |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
204351-1
te connectivity / amp
