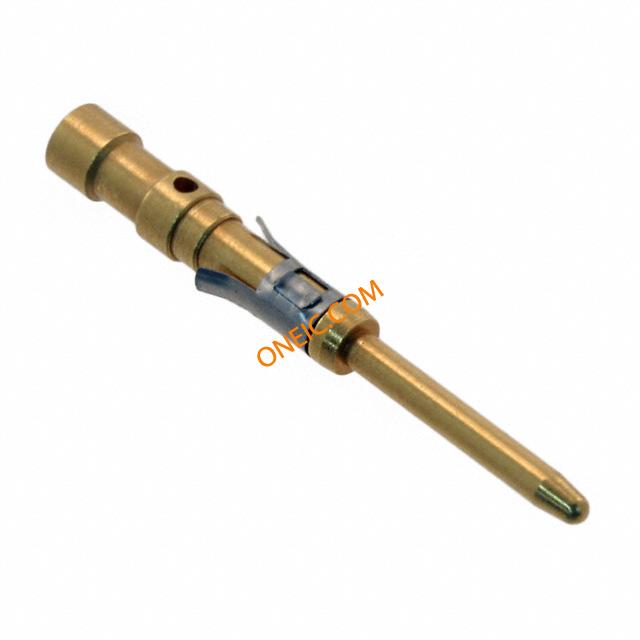

204219-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | PIN CONTACT ASSY. Multimate CONN PIN 16-18AWG GOLD CRIMP Pin & Socket Connectors PIN CONTACT ASSY. Conn Contact M 1 POS Crimp ST Cable Mount 1Terminal 1Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Brass Contact MaterialType IISearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 900 | 工厂包装数量 | 900 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 测试电流 | 13 | ||
机械参数
| 镀层 | Gold | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 电缆类型 | 分离式导线 |
| 导线线规 | 16-18 AWG | 安装类型 | Straight |
| 插针或插孔 | Pin | 端子尺寸 | 16 |
| 连接器类型 | 压接扣入式 | 接触镀层 | Gold |
| 插入件材料 | 黄铜 | 触头材料 | Copper Alloy |
| 包装数量 | 900 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | 蓝色 |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 | 接触镀层厚度 | 30 |
产品信息
| 备注 | TH501 调整盘（料号 1-601967-5）与手动工具 601967-1 搭配使用。, 插入工具编号 200893-2（用于绝缘直径不超过 1.78 [.07] 的情况）。, 退针工具编号 305183 | 类型 | Machined |
| 系列 | Multimate Type II | 产品子类型 | Contacts |
| 应用细节 | Signal | ||
