点击放大查看

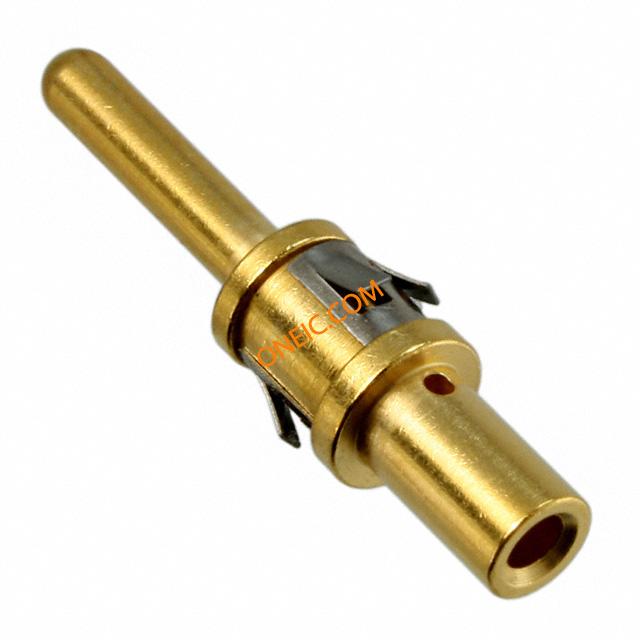

202422-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-14AWG GOLD CRIMP Pin & Socket Connectors PIN CONT ASSY TYPE I 202422-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 2.00-3.00² [14-12] mm [AWG]Bronze Contact MaterialType ISearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts PIN CONT ASSY,TYPE I |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | 2024221 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 测试电流 | 23 | ||
机械参数
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线线规 | 12-14 AWG |
| 端接方式 | Crimp | 插针或插孔 | Pin |
| 端子尺寸 | 16 | 连接器类型 | Connector Rectangular |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 磷青铜 |
| 触头材料 | Copper Alloy | 包装数量 | 100 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 兼容外壳尺寸（如TM-700等） | CR ZIF 连接器, G 系列连接器, M 系列连接器 | 接触镀层厚度 | 30 |
| 线规或范围 - AWG | 14-12 | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | Multimate Type I | 产品子类型 | Contacts |
| 应用细节 | Power | ||
