点击放大查看

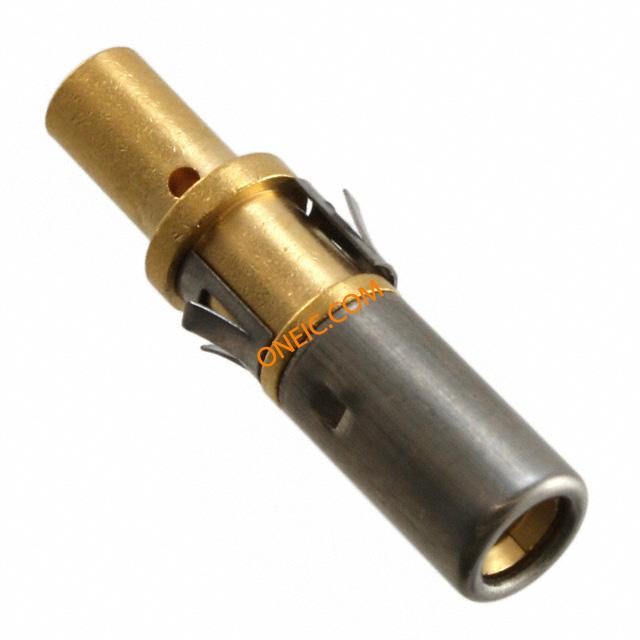

202418-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 16-18AWG 30GOLD Pin & Socket Connectors SKT CONT ASSY TYPE I Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Bronze Contact MaterialType ISearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts SKT CONT ASSY,TYPE I |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | 2024181 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | ||
电气参数
| 测试电流 | 23 | 输出电流 | 23.0 |
| 最大额定电流 | 23 A | 输出高/低电流 | No |
机械参数
| 镀层 | Nickel | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线线规 | 16-18 AWG |
| 端接方式 | Crimp | 触点形式 | Power |
| 触点尺寸 | 12 | 触头类型 | Socket |
| 引脚直径 | 2.39 | 插针或插孔 | Socket |
| 端子尺寸 | 12 | 连接器类型 | Connector Rectangular |
| 接触镀层 | Gold Over Nickel | 插入件材料 | 青铜 |
| 触头材料 | Copper Alloy | 包装数量 | Loose Piece |
| 主要材料 | Bronze | 绝缘高度 | No |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp Snap-In | 绝缘材料 - 类型 | Beryllium Copper |
| 镀层厚度（通用） | 30µin (0.76µm) | 兼容外壳尺寸（如TM-700等） | CR ZIF 连接器, G 系列连接器, M 系列连接器 |
| 接触镀层厚度 | .76 | 触点材料 - 配合 | Gold (30) |
| 线规或范围 - AWG | 0.80-1.40² [18-16] | ||
产品信息
| 类型 | Power | 等级 | Commercial |
| 连接器性别 | SKT | 系列 | Type I |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 其他规格 | Wire/Cable | 应用细节 | Power |
| 适用/相关制造商 | M Series Connectors / CR ZIF Connectors / G Series Connectors | ||
