点击放大查看

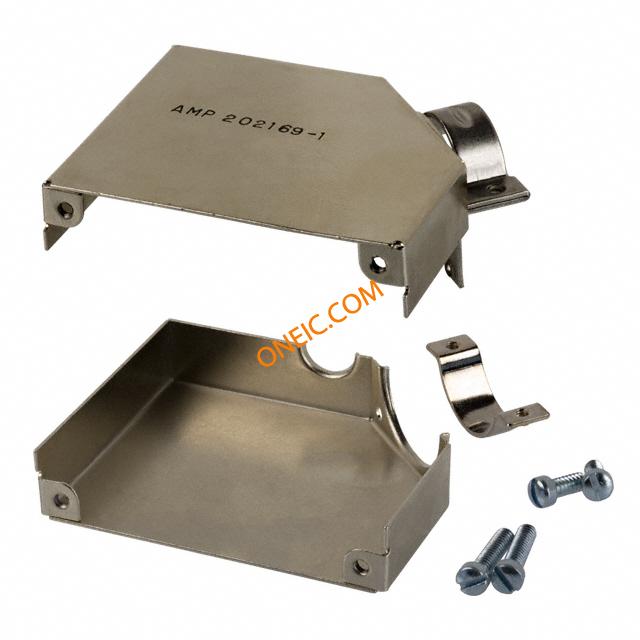

202169-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 104 POS Shield Kit Carbon Steel Nickel Finish M Series Connectors CONN SHIELD 104CF POS 2PC SHORT Pin & Socket Connectors M-SERIES HALF SHIELD Connector Accessories 104 POS Shield Kit Carbon Steel Nickel Finish Product Highlights:HardwareHardware Type = ShieldShort Shield Size45° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SHIELD KIT, STEEL M-SERIES HALF SHIELD KIT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85366990 |
机械参数
| 间距 | 2.54 mm | 高度 | 29.08 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 出线方向 | :45° | 连接器类型 | :Plug & Socket |
| 接触镀层 | Nickel | 安装样式 | PCB |
| 本体材料 | :Steel | 触头材料 | Steel |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 外壳尺寸-插件 | :- |
产品信息
| 类型 | Shield | 系列 | M |
| 产品子类型 | Receptacle Housings | 附件类型 | Shield |
| 规格说明 | Metal, 104 Positions | 射频系列/标准 | 202169 |
| 适用产品/相关产品 | M Series | ||
