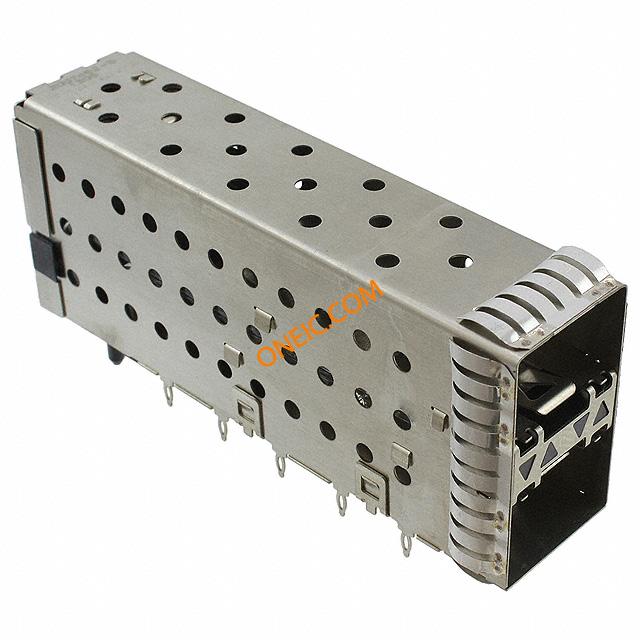

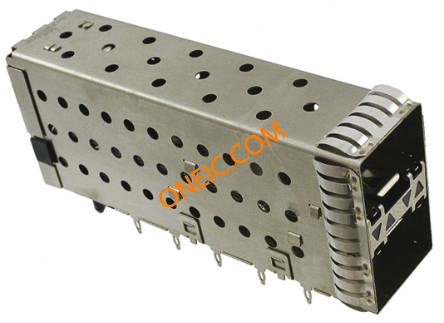

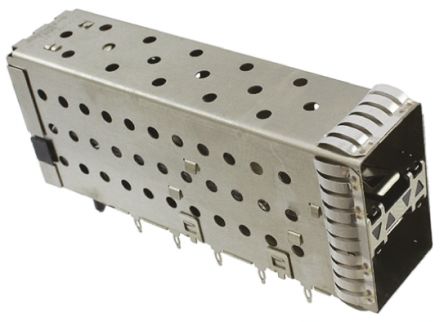

2007492-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SFP M 40 POS 1.6mm Press Fit RA Thru-Hole 40 Terminal 2 Port Tray I/O Connectors SFP+ASSY 2X1 SPRING FINGERS 4LP SN ASSY CASE BLACK LCP SFP+ 4LP SFP+ connector assembly, stacked,2 port 2007492-5 Conn SFP+ RCP 40 POS 1.6mm Press Fit RA Thru-Hole 40 Terminal 2 Port Box Conn SFP+ RCP 40 POS 1.6mm Press Fit RA Thru-Hole 40 Terminal 2 Port Box Search Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO CAGE, STACKED, 2X1, SFP+, LIGHT TE Connectivity SFP+ 系列, 40 路 2 x 1 端口 直向 SFP+ 笼组件 母 按式端子 带导光管 SFP+assy 2x1 Spring Fingers 4LP Sn |
| 分类 |
商业参数
| 产品 | SFP Connectors | 其他名称 | 20074925 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 颜色 | Black | 间距 | 1.6 mm |
| 重量 | 0.1 | 材料（通用） | :Nickel Silver |
| 包装方式 | Tray | 发光颜色 | Yes |
| 端接方式 | Press Fit | 安装类型 | Through Hole |
| 连接器类型 | SFP+ | 接触镀层 | Gold |
| 安装样式 | Through Hole | 连接器样式 | Receptacle with Cage, Ganged (2x1) |
| 触头材料 | Copper Alloy | 壳体材料 | Liquid Crystal Polymer |
| 端接样式 | Press Fit | 触点数 | 40 |
| 接触件端接 | :Press Fit Vertical | 位数 | 40 (20 x 2) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | SFP | 连接器性别 | M |
| 系列 | SFP+ | 产品特性 | Board Guide, EMI Shielded, Light Pipe |
| 附件类型 | Cage Assembly, 2x1 Stacked | 端口数 | 2 |
