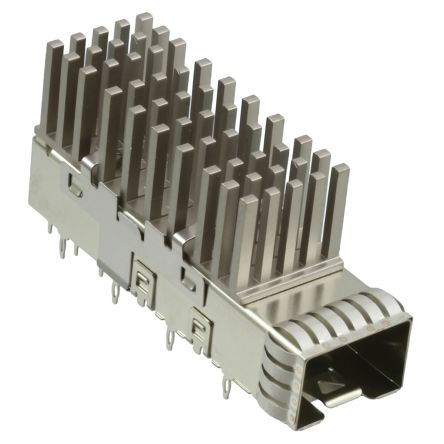

点击放大查看
2007464-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Cage Nickel Silver Tray I/O Connectors 1x1 Cage Assy W/NETWORK HS & EMI CONN CAGE&HEAT SINK SGL PORT SFP+ 1x1 Cage Assy, PF,with Heatsink SFP+ 1x1 Cage Assy, PF,with Heatsink Search Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO TE Connectivity 单端 直 SFP+ 笼, 压配合端接, 14.5 x 48.7 x 22.8mm |
| 分类 |
商业参数
| 产品 | SFP Connectors | 标准包装规格 | 40 |
| 产品类别 | I/O Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 数据速率（最大） | 16 | ||
机械参数
| 尺寸 | SFP+ | 高度 | 22.8mm |
| 包装方式 | Tray | 方向 | 直 |
| 端接方式 | Press-Fit | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | SFP+ | 连接器样式 | Cage with Heat Sink |
| 总宽度 | 48.7mm | 壳体材料 | Nickel Silver |
| 总长度 | 14.5mm | 框架材料 | Nickel Silver |
| 面板安装类型 | 通孔 - 免焊连接 | 端接排数 | 压配合 |
| 端接样式 | Press Fit | 兼容外壳尺寸（如TM-700等） | SFP+ SMT 连接器 |
| 触头长度-柱 | 2.05 mm [ .081 in ] | 堆叠高度（配合） | 13.5 mm [ .531 in ] |
| 外壳尺寸，连接器布局 | 14.5 x 48.7 x 22.8mm | ||
产品信息
| 类型 | Cage | 连接器性别 | Female |
| 系列 | SFP+ | 产品特性 | EMI Shielded |
| 卡类型 | Single | 端口样式 | 1 x 1 |
| 产品子类型 | 壳体组件 | 端口数 | 1 |
| 射频系列/标准 | 2007464 | 其他规格 | External Springs |
| 输入数量及类型 | 1 | ||
环境参数
| 冷却类型 | Pin | 热保护 | Yes |
| 自然散热热阻 | Tall | 封装热阻 | 2.25 mm [ .089 in ] |
