点击放大查看

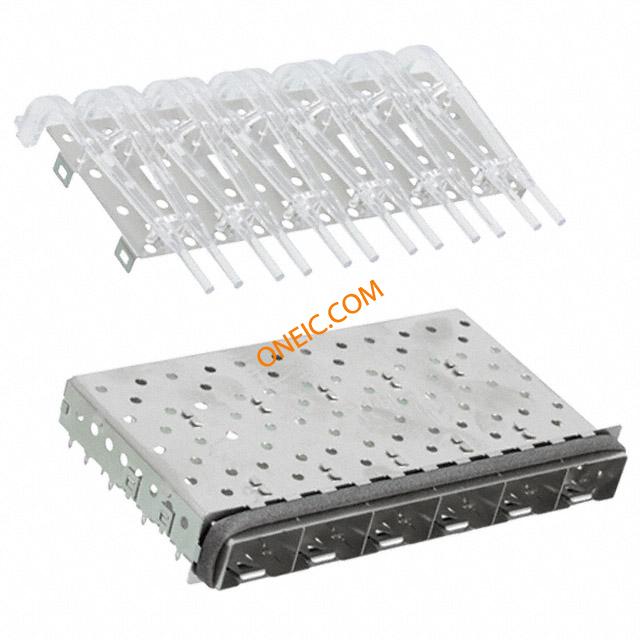

2007169-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Cage Nickel Silver Tray I/O Connectors Cage 1x6 EMI Shield w/ lightpipes CONN SFP+ CAGE 1X6 W/LGHT GASKET 2007169-1 SFP 1x6 cage Assm Light Pipe, EMI gasket SFP 1x6 cage Assm Light Pipe, EMI gasket Search Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO |
| 分类 |
商业参数
| 产品 | SFP Connectors | 其他名称 | A97931 |
| 标准包装规格 | 12 | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 光纤端口数 | 否 | 数据速率（最大） | 16 |
机械参数
| 尺寸 | SFP+ | 深度 | 54.8 |
| 高度 | 17.05 | 包装方式 | Tray |
| 端接方式 | Press-Fit | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | SFP+ | 连接器样式 | Cage, Ganged (1 x 6) |
| 外形（宽 x 高） | Standard | 壳体材料 | Nickel Silver |
| 总长度 | 90.9 | 框架材料 | Nickel Silver |
| 面板安装类型 | 通孔 - 免焊连接 | 端接样式 | Press Fit |
| 兼容外壳尺寸（如TM-700等） | SFP+ SMT 连接器 | 触头长度-柱 | 2.05 mm [ .081 in ] |
产品信息
| 类型 | Cage | 连接器性别 | Female |
| 系列 | SFP+ | 产品特性 | EMI Shielded, Light Pipe |
| 卡类型 | Ganged | 端口样式 | 1 x 6 |
| 产品子类型 | 壳体组件 | 端口数 | 6 |
| 射频系列/标准 | 2007169 | 其他规格 | Elastomeric Gasket |
| 输入数量及类型 | 6 | ||
环境参数
| 热保护 | No | 封装热阻 | 1.5 mm [ .059 in ] |
