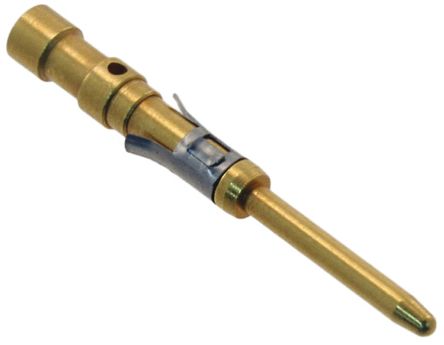

200336-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONTACT PIN ASSY. Multimate CONN PIN 16-18AWG GOLD CRIMP Type II Series Size 16 Male Circular Connector Contact, Crimp,Wire size 18 to 16AWG Pin & Socket Connectors CONTACT PIN ASSY. SIZE 16 Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Brass Contact MaterialType IISearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP MultimateContact;Pin;Gold(30)OverNickel(50);18to16AWG;Brass;16 TE Connectivity Type II 系列 公 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格 |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 900 | 工厂包装数量 | 900 |
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 输出电流 | :13A | 最大额定电流 | 13 A |
机械参数
| 长度 | 27.36mm | 重量 | 0.002 |
| 镀层 | Gold | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 出线方向 | No |
| 导线线规 | 16-18 AWG | 端接方式 | Crimp |
| 触点形式 | 1Signal | 触点尺寸 | 16 |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 外壳镀层 | Not Required | 接触镀层 | Gold over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Stainless Steel | 总长度 | 27.36 mm |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | :18AWG |
产品信息
| 类型 | Machined | 连接器性别 | Male |
| 系列 | Type II | 产品子类型 | Contacts |
| 射频系列/标准 | 200336 | 适用产品/相关产品 | :G Series, M Series, CPC Connectors |
