2-5499141-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings A/L UNIV HDR 34P RA LG LAT BLUE TE Connectivity AMP LATCH Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination, 1A A/L UNIV HDR 34P RA LG LAT BLUE A/L UNIV HDR 34P RA LG LAT BLUE Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 34WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 标准包装规格 | 40 |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :1Gohm |
机械参数
| 间距 | 2.54 mm | 重量 | 0.0967 |
| 材料（通用） | :Glass Reinforced Thermoplastic | 端接方式 | Solder |
| 安装类型 | Right | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 第一触头极性 | Pin (Male) |
| 触点数 | 34 | 接触件端接 | :Through Hole Right Angle |
| 端子柱长度 | 2.79 mm | 第一连接器安装类型 | :PC Board |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 极性 | :Bump/Clip |
| 产品子类型 | Headers - Universal Ejection Pin | ||
环境参数
| 插拔次数 | :200 | 机械寿命 | New At Mouser |
| 工作温度 | - 55 C to + 125 C | ||
文档与媒体
相关型号

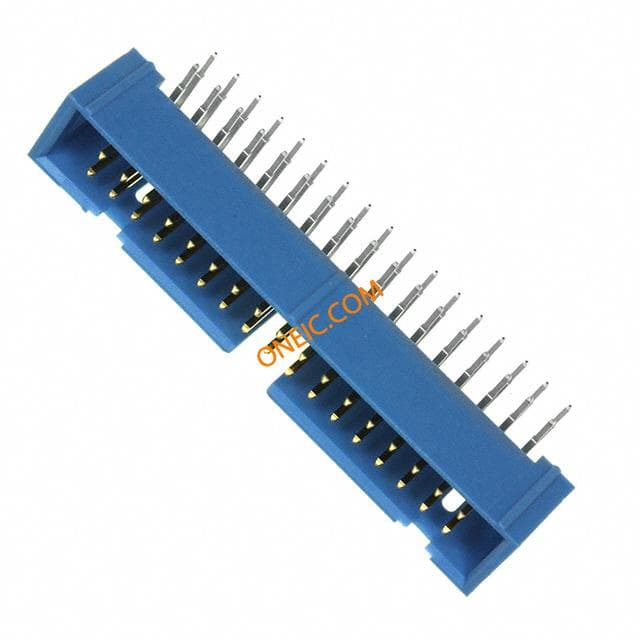

3-1761605-1
