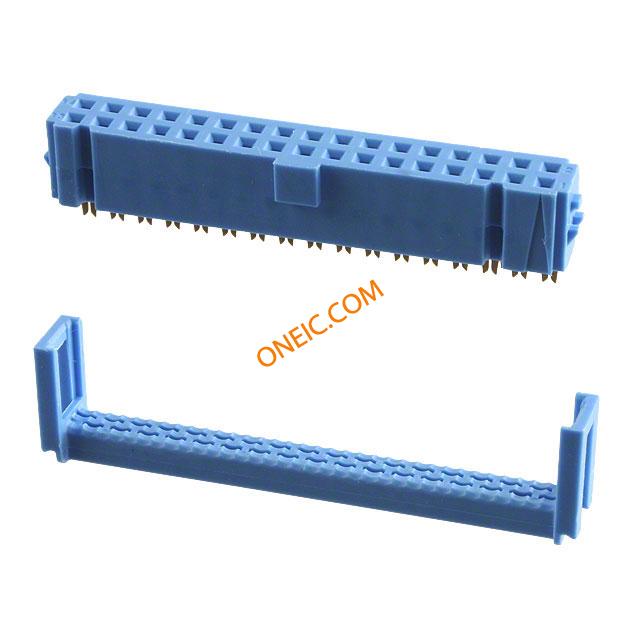

点击放大查看
2-1658527-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Headers & Wire Housings 34 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 622 SERIES 34POS 34 way IDC bump polarised socket Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 34WAY TE Connectivity AMP-LATCH 622 系列 2行 34路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-3441LF=FSKT IDC S 34 30AU |
| 分类 |
商业参数
| 其他名称 | 216585278 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - 622 Series | 击穿电压 | :500V |
| 绝缘电阻 | :1Gohm | 触点额定电流 | :1A |
机械参数
| 颜色 | Blue | 深度 | 7.05 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 12.1 mm |
| 重量 | 0.006 | 材料（通用） | :Glass Feinforced Thermoplastic |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | With | 导线线规 | 26-28 AWG, Stranded or Solid |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | 622 Series |
| 接触镀层 | Gold (30) | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Beryllium Copper |
| 壳体材料 | Thermoplastic | 总长度 | 47.68 mm |
| 安装特性 | Without | 电缆端接方式 | IDC |
| 端接样式 | IDC | 配接方向 | With |
| 触点数 | 34 | 接触件端接 | :IDC / IDT |
| 位数 | 34 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Ribbon Cable | 连接器性别 | Receptacle |
| 产品特性 | Feed Through; Polarizing Key, Strain Relief | 极性 | :Bump/Clip |
| CAD图纸 | 3D CAD Model | 产品子类型 | Socket Headers |
| 连接类型 | Ribbon Cable | ||
环境参数
| 插拔次数 | :200 | 工作温度 | :125°C |
