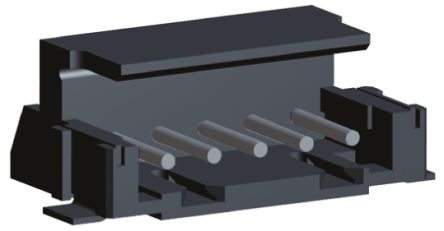

2-292173-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 5POS SMD R/A TIN BLK TE Connectivity AMP CT Series 2mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 4A Headers & Wire Housings CT BOX HDR H SMT 5P O/TAPE BLA Conn Shrouded Header HDR 5 POS 2mm Solder RA SMD Embossed T/R Product Highlights:Wire-to-BoardApplies To Printed Circuit BoardConnectorConnector = Header5 PositionsSearch Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, 5WAY, R/A, 2 Headerrightangle5way2.0mmCT TE Connectivity AMP CT 系列 2mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 4A , 表面安装 CT BOX HDR H SMT 5P O/TAPE BLA |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A100984CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85332100 |
| 无铅定义 | Reflow solder capable to 245°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 125 V ac/dc | 开关功能 | No |
| 接触电阻 | 20 mohm | 最大额定电流 | 4A |
| 最小供电电压 | 125VDC/125VAC | ||
机械参数
| 颜色 | Black | 深度 | 10.4 mm |
| 间距 | 2 mm | 高度 | 5.8 mm |
| 重量 | 0.004 | 包装方式 | Tape & Reel (TR) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2mm | 外壳颜色 | Black |
| 安装类型 | Right Angle | 连接器类型 | Crimp, MT (Mass Termination) |
| 接触镀层 | Tin | 安装样式 | Surface Mount |
| 排数 | 1 | 连接器用途 | Header |
| 触头材料 | Brass | 壳体材料 | Polyphenylene Sulfide (PPS) |
| 总长度 | 2.00 [0.079] | 包装数量 | Tape Mounted |
| 面板安装类型 | Without | 第一触头极性 | Pin (Male) |
| 排针方向 | Box | 触点数 | 5 |
| 位数 | 5 | 接触长度 - 配合 | 0.165" (4.19mm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP CT | 产品特性 | Solder Retention |
| 产品子类型 | Connector | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
