点击放大查看

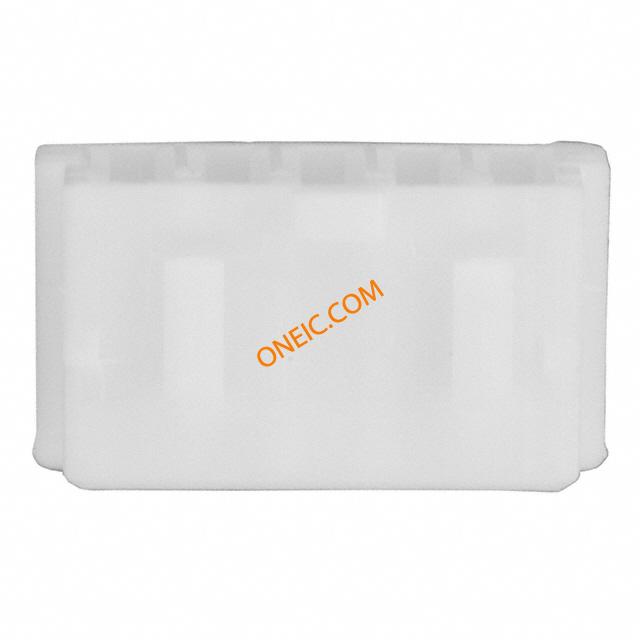

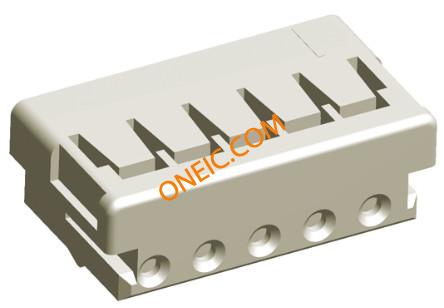

179228-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 5POS SGL CRIMP 2MM Receptacle housing, 2mm, 5 way, CT Headers & Wire Housings RCPT 5 POS CRIMP 2mm Conn Housing RCP 5 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 5Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, RECEPTACLE HOUSING, 5WAY RECEPTACLEHOUSING,5POSITION,2MMPITCH,CRIMPTYPEII Connector: wire-board; w/o terminals; PIN:5; 2mm TE Connectivity AMP CT 系列 2mm 节距 5 路 直 母 压接连接器外壳 CT CRIMP TYPE REC HSG |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 3000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP CT Series | 额定电压 | :125V |
| 最大额定电流 | 4/Contact A | 最小供电电压 | 125VDC/125VAC |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Natural | 深度 | 6.6mm |
| 间距 | 2 mm | 宽度 | 4.6mm |
| 高度 | 4.6 mm | 长度 | 12mm |
| 重量 | 0.001 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 导线线规 | 22-30 AWG |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 柱间距 | 2mm | 外壳颜色 | Natural |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | :Tin |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | :- |
| 壳体材料 | Nylon | 总长度 | 2.00 [0.079] |
| 包装数量 | 500 | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.079" |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Natural | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 179228 | 产品特性 | TypeII |
| 制造商全称 | CTSeries | 产品子类型 | Connector |
| 连接类型 | Wire | 单元数量 | 500 |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 工作温度 | -30C to 105C | ||
文档与媒体
相关型号

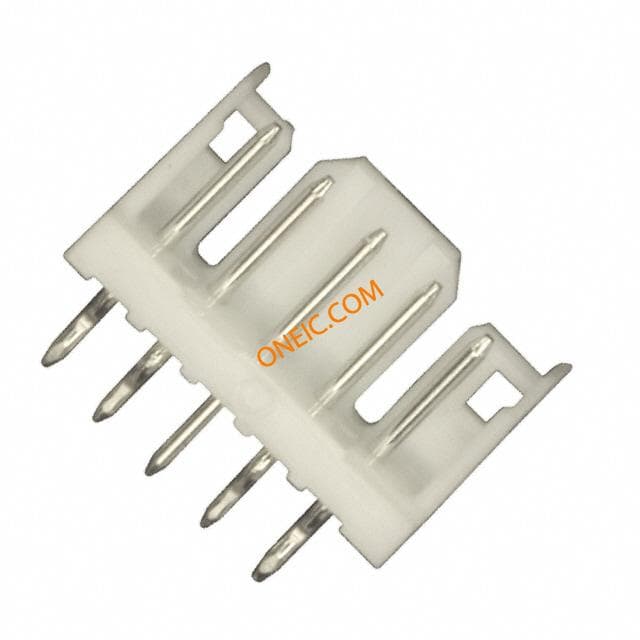

292161-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 5POS VERT 2MM T/H Headers & Wire Housings 5P VERT HDR ASSY Conn Shrouded Header HDR 5 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 5Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, PostHeaderAssembly,5Position,Vertical,2mmPitch,DIPStandardType Pin header straight Pitch2 mm Poles 5 CT, 292161-5, TE Connectivity CT P/HDR ASSY V 5P W/KINK NAT
179227-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 26-22AWG CRIMP Crimp socket contact, 22-26 AWG, CT Headers & Wire Housings CONTACT CRIMP RECPT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, SKT GOLD CRIMP CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CONTACT,RECEPTACLE,CRIMPTYPEII TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 CRIMP TYPE II REC CONTACT
179609-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 30-26AWG CRIMP Crimp socket contact, 26-30 AWG, CT Headers & Wire Housings RCPT CONTACT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, CRIMP, SOCKET, 30-26AWG, REEL AMPCTCRIMPType2ReceptacleContact TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 AMP CT CRIMP TTYPE-2 REC CONT.

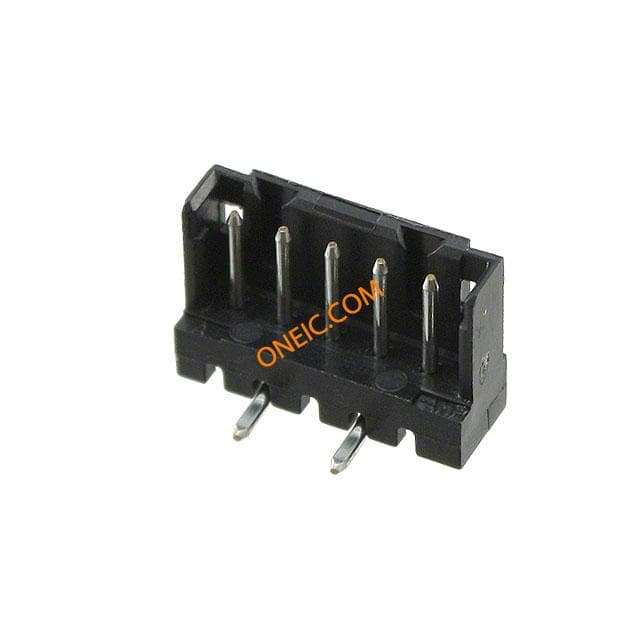

292172-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 5POS SMD VERT TIN Headers & Wire Housings CT POST HDR ASSY 5P IN-TUBE BL Conn Shrouded Header HDR 5 POS 2mm Solder ST SMD Tube Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 5Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT POST HDR ASSY 5P IN-TUBE BL

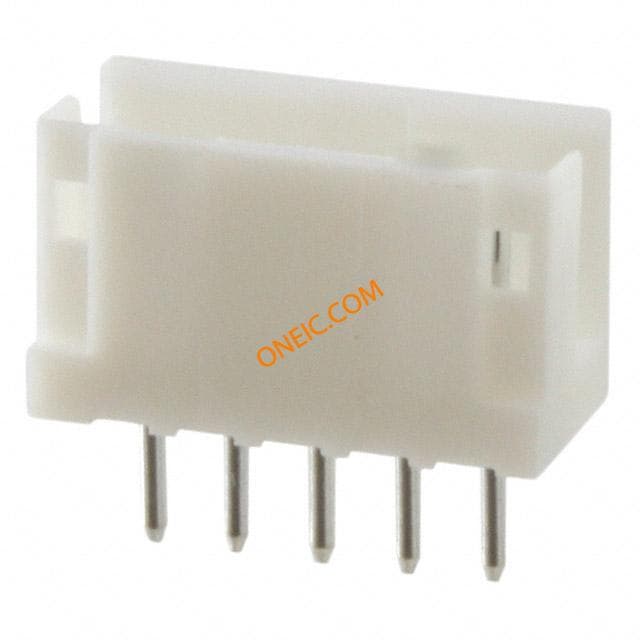

292133-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 5POS VERT 2MM 2mm AMP CT Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 5Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 5P W/O KIN
179227-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN SOCKET 2MM 22-26AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, AMP CT CRIMP-2 REC CONT AU
2-292173-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 5POS SMD R/A TIN BLK TE Connectivity AMP CT Series 2mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 4A Headers & Wire Housings CT BOX HDR H SMT 5P O/TAPE BLA Conn Shrouded Header HDR 5 POS 2mm Solder RA SMD Embossed T/R Product Highlights:Wire-to-BoardApplies To Printed Circuit BoardConnectorConnector = Header5 PositionsSearch Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, 5WAY, R/A, 2 Headerrightangle5way2.0mmCT TE Connectivity AMP CT 系列 2mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 4A , 表面安装 CT BOX HDR H SMT 5P O/TAPE BLA

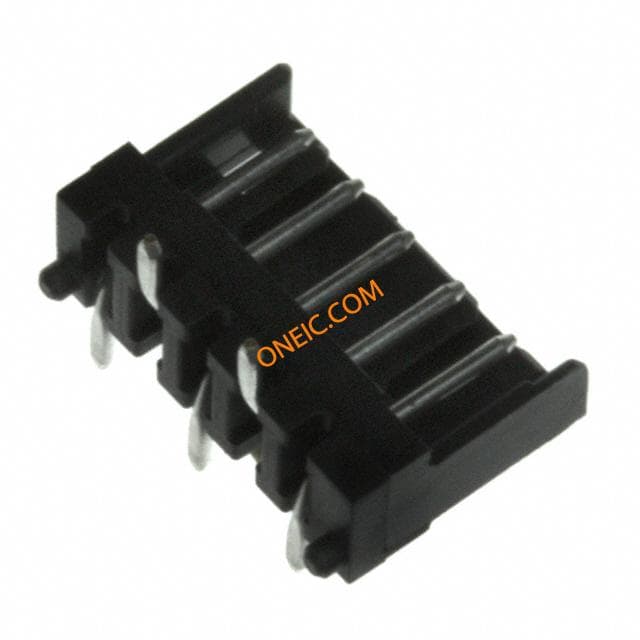

292171-5
te connectivity / amp
Conn Wire to Board HDR 5 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 5POS VERT SMD TIN TE Connectivity 292171 Series 2mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 5P POST HDR ASSY 2mm Conn Wire to Board HDR 5 POS 2mm Solder ST SMD Tube Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 5Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,2mm,5way,SMT,vertical,CT Pin header straight SMD Pitch2 mm Poles 5 CT, 292171-5, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 5路 (1排) 直 PCB 针座, 焊接端接 , 表面安装 CT POST HDR ASSY 5P IN-TUBE BL

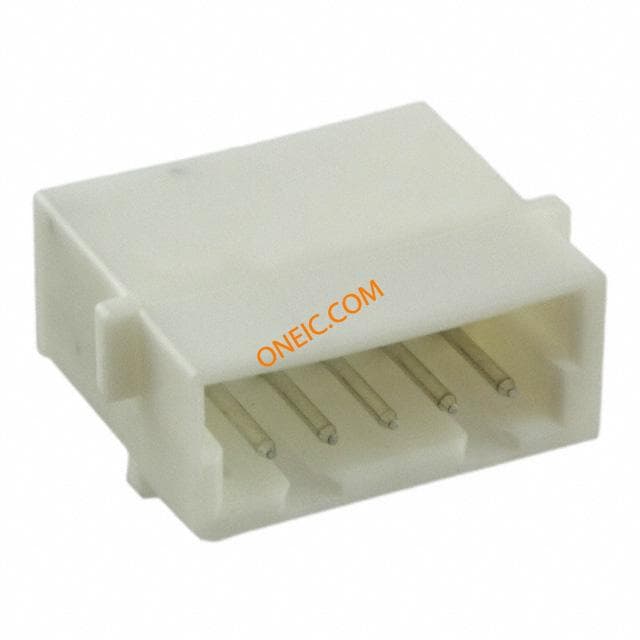

292156-5
