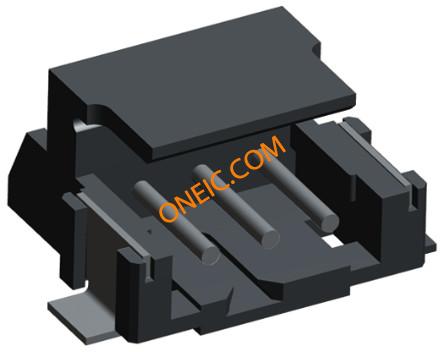

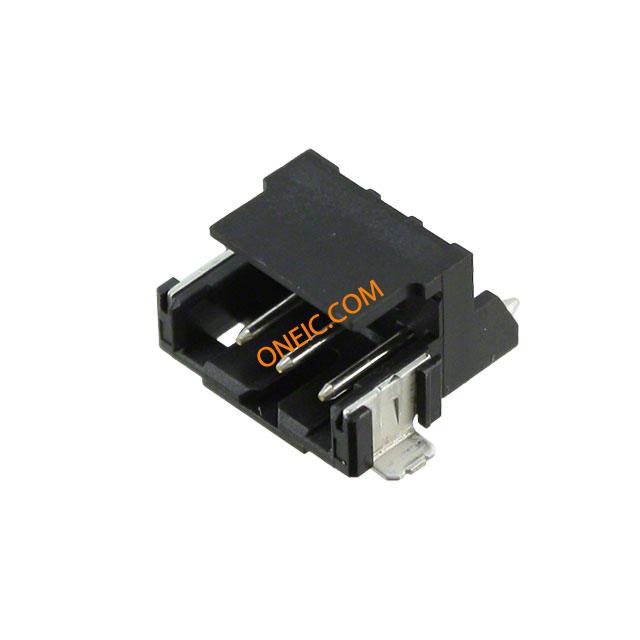

2-292173-3

点击放大查看

2-292173-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 3POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings CT BOX HDR H SMT 3P Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = Header3 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, HEADER, SMT, 3WAY HEADERBOXHMT,3WAY CT BOX HDR H SMT 3P O/TAPE BLA
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名Common Termination其他名称A100982CT
产品类别Headers & Wire Housings标准包装数量Tape & Reel
工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Reflow solder capable to 245°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP CT Series额定电压125 V ac/dc
开关功能No最大额定电流2A

机械参数

颜色Black间距2 mm
重量0.02包装方式Tape & Reel (TR)
端接方式Solder触头类型Male Pin
外壳颜色Black安装类型Right Angle
连接器类型Crimp, MT (Mass Termination)接触镀层Tin
安装样式Surface Mount排数1
连接器用途Header触头材料Brass
壳体材料Polyphenylene Sulfide (PPS)总长度2.00 [0.079]
包装数量Tape Mounted面板安装类型Without
端接样式SMD第一触头极性Pin (Male)
排针方向Box触点数3
接触件端接:Surface Mount Right Angle位数3
接触长度 - 配合0.165" (4.19mm)

产品信息

类型Shrouded Header连接器性别HDR
系列2-292173产品特性Solder Retention
产品子类型Connector连接类型Printed Circuit Board
加载位置数All

文档与媒体

在线文档
2-292173-3?RQPN=2-292173-3

相关型号

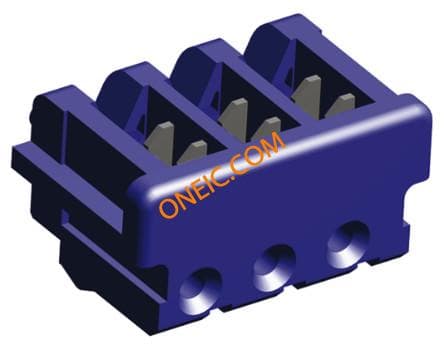

2-173977-3
