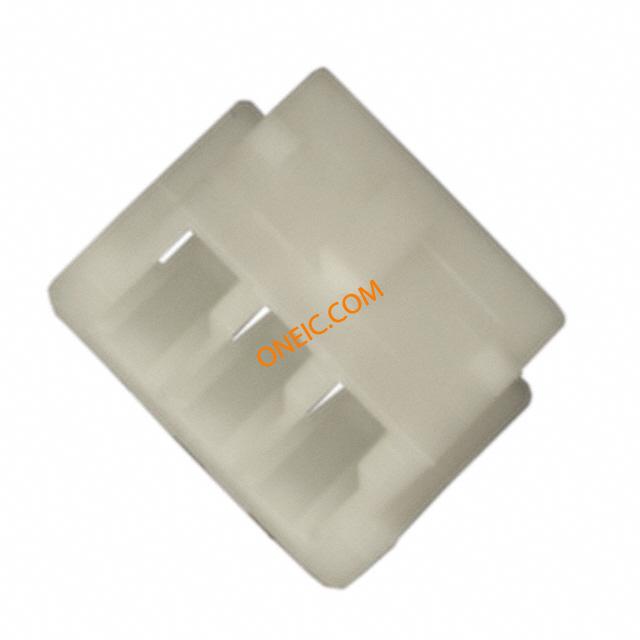

179228-3

点击放大查看

179228-3

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 3POS SGL CRIMP 2MM Receptacle housing, 2mm, 3 way, CT,white Headers & Wire Housings RCPT 3 POS CRIMP 2mm Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, RECEPTACLEHOUSING,3POSITION,2MMPITCH,CRIMPTYPEII TE Connectivity AMP CT 系列 2mm 节距 3 路 直 母 压接连接器外壳 CT CRIMP TYPE REC HSG
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名Common Termination产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量5000

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
UL档案号E28476认证机构CSA,UL
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

供电电压125 VAC, 125 VDC输入电阻1000
连接器阻抗压接最大额定电流4/Contact A
最小供电电压125VDC/125VAC保护额定电压（VPR）2000 VAC

机械参数

颜色Natural深度6.6mm
间距2 mm形状矩形
宽度4.6mm高度4.6 mm
长度8mm包装方式Bulk
壳体颜色自然导线线规22-30 AWG
方向直端接方式Crimp
触头类型Female Socket第二连接器Without
外壳颜色Natural安装类型Straight
行程角度Straight连接器类型Crimp
安装样式Wire排数1
连接器用途Receptacle壳体材料Nylon
总长度2.00 [0.079]包装数量5000
面板安装类型Without主要材料InterconnectSystem
插针孔直径0.079"端接样式Crimp
第一触头极性Pin (Male)触点数3
接触件端接Crimp位数3
触头长度-柱信号（数据）安装孔直径带有
典型触点布局同轴静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列179228
产品特性TypeII可密封否
制造商全称CTSeries产品子类型Connector
连接类型Wire适用产品/相关产品Wire-to-Board Connector

环境参数

测试温度标准部件 - 非辉光导线工作温度-30C to 105C

文档与媒体

PDF 文档
1631402.pdf
在线文档
179228-3?RQPN=179228-3

相关型号

292134-3

292134-3

te connectivity / amp

Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Bag 2mm AMP CT CONN HDR 3POS VERT 2MM WHT T/H Headers & Wire Housings BOX HDR V 3P AU W/KINK 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:ConnectorConnector Type = BlindmateMating Type = Header3 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT BOX HDR ASSY V 3P AU W/KINK

¥1.0880
详情
179227-1

179227-1

te connectivity / amp

Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 26-22AWG CRIMP Crimp socket contact, 22-26 AWG, CT Headers & Wire Housings CONTACT CRIMP RECPT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, SKT GOLD CRIMP CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CONTACT,RECEPTACLE,CRIMPTYPEII TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 CRIMP TYPE II REC CONTACT

¥0.0877
详情
179609-1

179609-1

te connectivity / amp

Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 30-26AWG CRIMP Crimp socket contact, 26-30 AWG, CT Headers & Wire Housings RCPT CONTACT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, CRIMP, SOCKET, 30-26AWG, REEL AMPCTCRIMPType2ReceptacleContact TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 AMP CT CRIMP TTYPE-2 REC CONT.

¥0.1714
详情

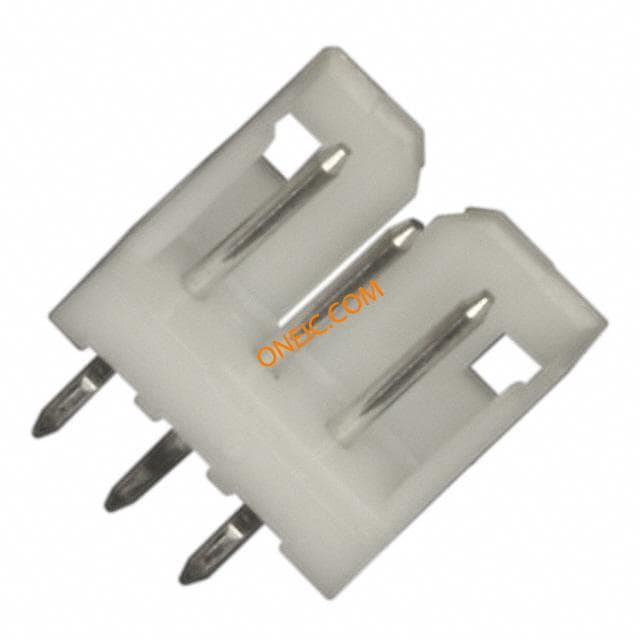

292161-3

292161-3

te connectivity / amp

Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 3POS VERT 2MM T/H TE Connectivity 292161 Series 2mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X03C VRT Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, PostHeaderAssembly,3Position,Vertical,2mmPitch,DIPStandardType Pin header straight Pitch2 mm Poles 3 CT, 292161-3, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔 CT P/HDR ASSY V 3P W/KINK NAT

¥1.0336
详情

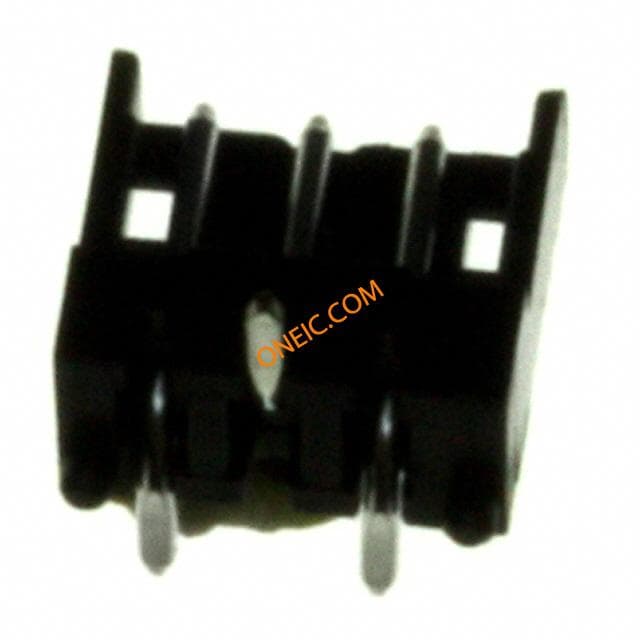

292171-3

292171-3

te connectivity / amp

Conn Wire to Board HDR 3 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 3POS VERT SMD TIN Headers & Wire Housings 3P POST HDR ASSY 2mm Conn Wire to Board HDR 3 POS 2mm Solder ST SMD Tube Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = Header3 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Pin header straight SMD Pitch2 mm Poles 3 CT, 292171-3, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接 , 表面安装 CT POST HDR ASSY 3P IN-TUBE BL

¥1.6055
详情

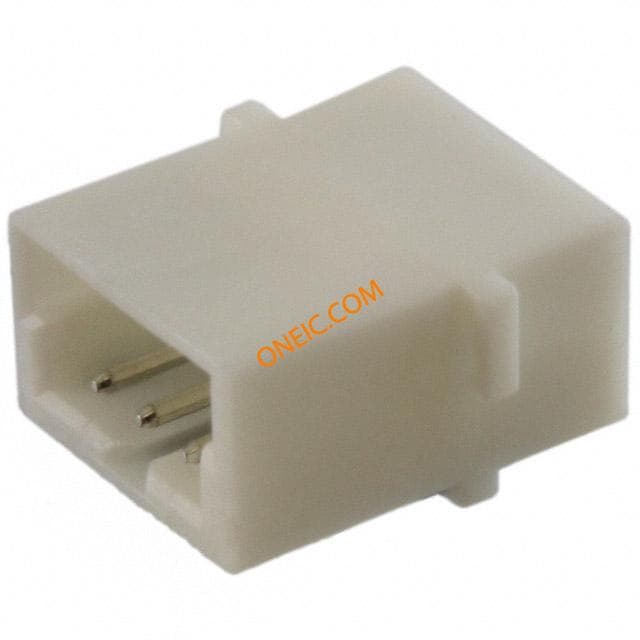

292156-3

292156-3

te connectivity / amp

Conn Coupler Header M/M 3 POS 2mm ST Panel Mount 2mm AMP CT CONN HEADER CT 3POS FREE HANGING Header plug, 2mm, 3 way,free hanging, CT Headers & Wire Housings CT RELAY HDR ASSY FREE HANGING Conn Coupler Header M/M 3 POS 2mm ST Panel Mount Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Header,2.0mm,crimp,MT,freehanging,3way TE Connectivity AMP CT 系列 1 行 2mm 节距 3 路 直 公/公 面板安装 PCB 壳体 CT RELAY HDR ASSY FREE HANGING

¥1.0397
详情
179227-4

179227-4

te connectivity / amp

Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN SOCKET 2MM 22-26AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, AMP CT CRIMP-2 REC CONT AU

¥0.8228
详情

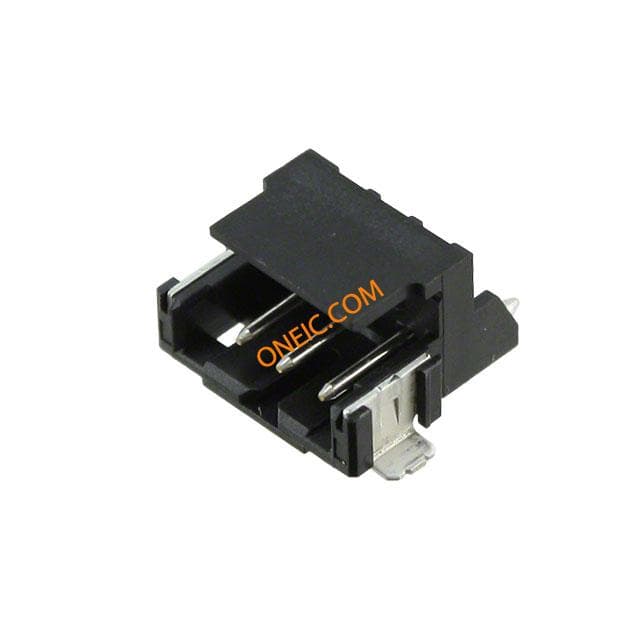

2-292173-3

2-292173-3

te connectivity / amp

Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 3POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings CT BOX HDR H SMT 3P Conn Shrouded Header HDR 3 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = Header3 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, HEADER, SMT, 3WAY HEADERBOXHMT,3WAY CT BOX HDR H SMT 3P O/TAPE BLA

¥3.7196
详情

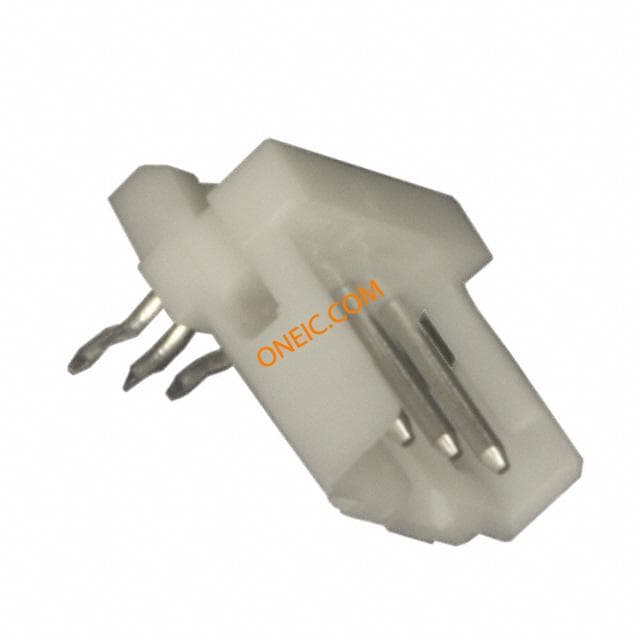

292253-3

292253-3

te connectivity / amp

Conn Shrouded Header HDR 3 POS 2mm Solder RA Thru-Hole 2mm AMP CT CONN HEADER 3POS R/A 2MM T/H TIN TE Connectivity 292253 Series 2mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 3P R/A HDR ASSY Conn Shrouded Header HDR 3 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, PostHeaderAssembly,3Position,Horizontal,2mmPitch,DIPStandardType Pin header 90° Pitch2 mm Poles 3 CT, 292253-3, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 2A , 通孔 CT CONN MT HDR ASSY H 3P NAT

¥0.5671
详情

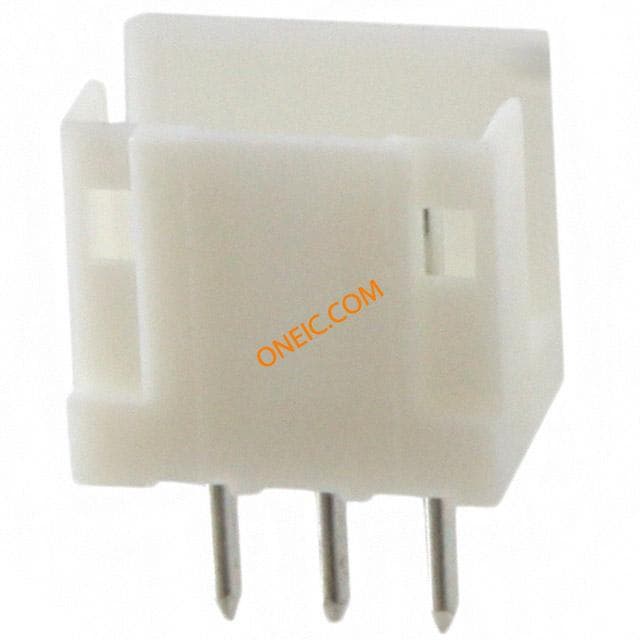

292133-3

292133-3

te connectivity / amp

Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 3POS VERT 2MM TE Connectivity 292133 Series 2mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination 292133-3 Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 3Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,box,PCB,2mm,3way,vert.,CT TE Connectivity AMP CT 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接 , 通孔 CT P/HDR ASSY BOX V 3P W/O KIN

¥0.8983
详情

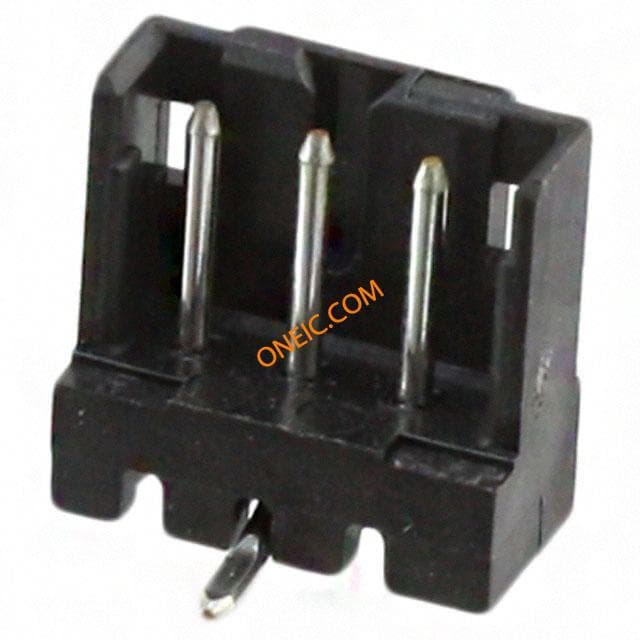

292172-3
