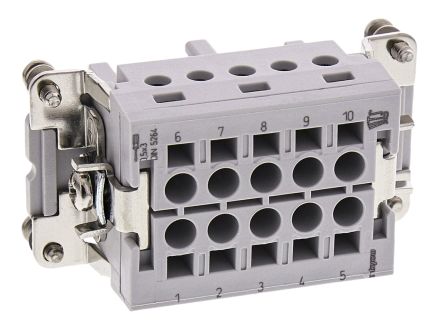

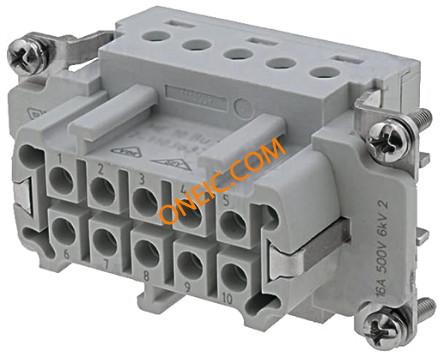

2-1103637-3

点击放大查看

2-1103637-3

制造商
TE Connectivity Ltd.
描述Conn Heavy-Duty Rectangular SKT 10Signal/1Ground POS Crimp ST Panel Mount Loose Piece Heavy Duty Power Connectors SKT INSERT 10+PE HE.10 SIZE 4 HTS Connectors and Accessories CONN SCKT INSERT 10+PE POS CRIMP HD Connector Insert HE10 female Conn Heavy-Duty Rectangular SKT 10Signal/1Ground POS Crimp ST Panel Mount Loose Piece Product Highlights:HE.10 SeriesInsertProduct Size = 4Contact Type = Crimp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDConnectorInsertHE10female TE Connectivity HE 系列 10针 10P+E极 插座 电源连接器外壳 HE.10.BU.C
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

交货时间59 Days子类别Connector Rectangular
产品类别Heavy Duty Power Connectors标准包装数量Bulk
工厂包装数量5

合规参数

RoHSRoHS Compliant材料阻燃等级UL94 V-0

电气参数

额定电压400V极数10+PE
供电电压400最大额定电流16A

机械参数

尺寸4颜色Gray
包装方式Loose Piece端接方式Crimp
触头类型HE/HA安装类型Panel Mount
连接器类型Insert without Contacts插入件材料插座
壳体材料Polycarbonate (PC), Glass Filled包装数量5
主要材料Contact端接样式Crimp
触点数10Signal/1Ground位数10+Ground
外壳尺寸-插件否衬套/护套类型不带

产品信息

备注与 HTS 系列 HE/HA 接触件搭配使用类型Heavy-Duty Rectangular
连接器性别RCP系列Han E
极性10P+E极数格式10P+E
制造商全称HanESeries产品子类型Inserts
附件类型Contact适用产品/相关产品Stamped Crimp Contact

环境参数

工作温度-40°C ~ 125°C
