点击放大查看

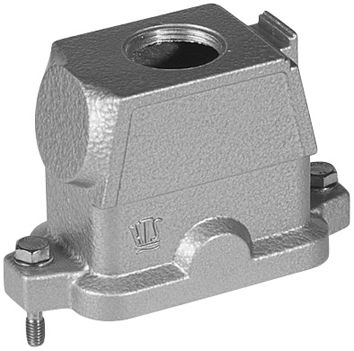

1106427-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood Die Cast Aluminum Black Finish Loose Piece Heavy Duty Connectors CONN HOOD TOP SZ4 M25 EMV-K HD Connect, Hood EMV-K.10/24.STO.1.M25.G Heavy Duty Power Connectors Conn Acc Hood Type M25 Die Cast Alum Connector Accessories Hood Die Cast Aluminum Black Finish Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECT,HOODEMV-K.10/24.S TE Connectivity EMV-K 系列 电源连接器外壳 EMVK10/24.STO.1M25G |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
机械参数
| 尺寸 | 4 | 颜色 | 黑色 |
| 宽度 | 53 mm [ 2.086 in ] | 表面处理 | Black |
| 高度 | 70 mm [ 2.756 in ] | 长度 | 109 mm [ 4.291 in ] |
| 材料（通用） | Die Cast Aluminum | 锁定类型 | 护罩 |
| 包装方式 | Bulk | 螺纹尺寸 | M25 |
| 外壳颜色 | Black | 连接器类型 | Hood |
| 外壳涂层 | Chromite TCP Passivation | 连接器样式 | Top |
| 锁定特性 | Screw Lock on Hood | 壳体材料 | Aluminum Alloy, Die Cast |
| 包装数量 | Loose Piece | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 4.291" L x 2.087" W x 2.756" H (109.00mm x 53.00mm x 70.00mm) | 工作尺寸 | 109.00 x 70.00 x 53.00 |
| 外壳尺寸-插件 | 是 | AC输出连接器 | 顶部 |
产品信息
| 备注 | Protection against electro-magnetic interference, pressure-tight | 类型 | Hood |
| 样式 | Top Entry | 系列 | EMV-K |
| 制造商全称 | HTS | 产品子类型 | Accessory |
| 锁定位置 | Screw Locks on Hood | 附件类型 | Hood |
| 射频系列/标准 | 1106427 | ||
环境参数
| 液体防护 | Yes | 防护等级 | IP68 - Dust Tight, Waterproof |
| 耐磨防护 | 是 | 工作温度 | -40°C ~ 80°C |
相关型号
1-1103636-1
te connectivity / amp
Conn Heavy-Duty Rectangular PIN 10Signal/1Ground POS Screw ST Panel Mount Carton HTS Connectors and Accessories HE.10.STI.S HE 10 way screw terminal male insert Heavy Duty Power Connectors PIN INSERT 10+PE HE.10 SIZE 4 Conn Heavy-Duty Rectangular PIN 10Signal/1Ground POS Screw ST Panel Mount Carton Product Highlights:HE.10 SeriesInsertProduct Size = 4Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 10WAY HE10wayscrewterminalmaleinsert Connector: HTS; male; HTS HE; PIN:10; 10+PE; size 4; 16A; 400V TE Connectivity HE 系列 10针 10P+E极 插头 大负荷电源连接器套件
2-1103206-3
te connectivity / amp
Conn Heavy-Duty Rectangular SKT 42Signal/1Ground POS Crimp ST Panel Mount Loose Piece CONN INSERT SKT SZ4 42POS CRIMP Heavy Duty Power Connectors HN.2D.42.BU.C Conn Heavy-Duty Rectangular SKT 42Signal/1Ground POS Crimp ST Panel Mount Loose Piece Product Highlights:HN.2D.42 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, CRIMP, 42WAY HN.2D.42.BU.C
2-1103636-3
te connectivity / amp
Conn Heavy-Duty Rectangular PIN 10Signal/1Ground POS Crimp ST Panel Mount Carton HTS Connectors and Accessories CONN PIN INSERT 10+PE POS CRIMP HD Connector, Insert HE10 male Heavy Duty Power Connectors PIN INSERT 10+PE HE.10 SIZE 3 Conn Heavy-Duty Rectangular PIN 10Signal/1Ground POS Crimp ST Panel Mount Carton Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDConnector,InsertHE10male TE Connectivity HE 系列 10针 10P+E极 插头 电源连接器 HE.10.STI.C
1108783-2
te connectivity / amp
Connector Accessories Frame Heavy Duty Power Connectors MDL2-GR.U-4.B1-2 MDL2-GR.U-4.B1-2 1108783-2
1108783-1
te connectivity / amp
Connector Accessories Frame Heavy Duty Power Connectors MDL2-GR.O-4.B1-2 MDL2-GR.O-4.B1-2 1108783-1
1103250-5
te connectivity / amp
HVS-GR.O-4/B.1-3 Heavy Duty Connectors CONN FRAME SIZE 4 MDL HD Connector, HVS Frame size 4 top Heavy Duty Power Connectors ASSY MODULE FRM 1-4 HVS-GR.O-4/B.1-3 HVS-GR.O-4/B.1-3 Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, rectangular industrial, input/output, box to box, power, wire to wire, Heavy Duty HDCONNECTOR,HVSFRAMESIZE4
2-1104004-3
te connectivity / amp
Conn Rectangular PIN 14Signal/1Ground POS Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN INSERT PIN SZ4 14POS CRIMP Heavy Duty Power Connectors HVT.14.STI.C Conn Rectangular PIN 14Signal/1Ground POS Crimp ST Cable Mount Loose Piece Product Highlights:HVT.14 SeriesInsertProduct Size = 4Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HVT.14.STI.C

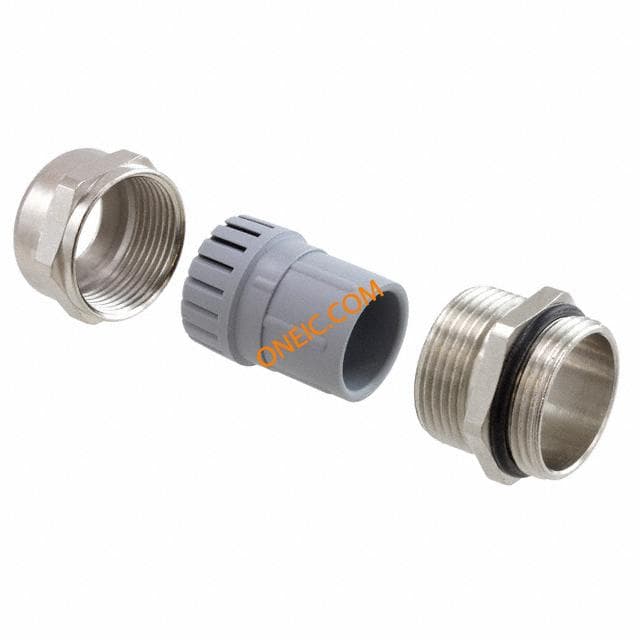

2-1102770-5
