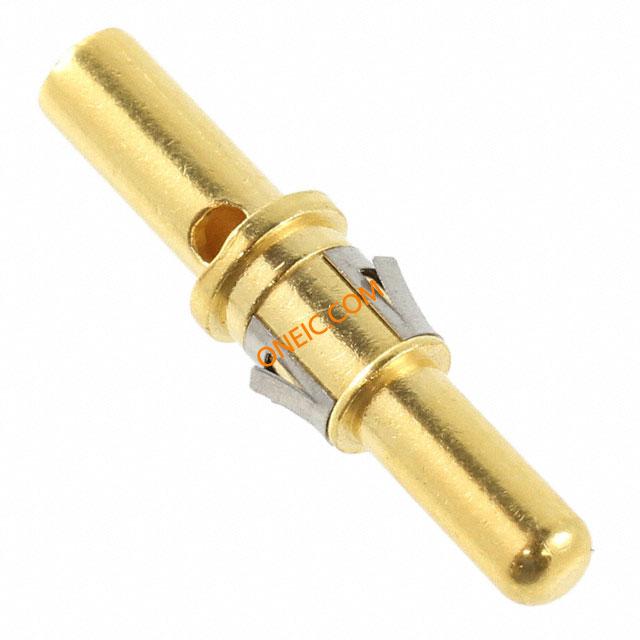

193534-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN PWR 12-14AWG CRIMP GOLD Pin & Socket Connectors PIN ASSY POWER 12- PIN ASSY, POWER ,12-14 AWG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL档案号 | E28476 |
| 标准编号 | CSA, UL | ||
电气参数
| 输出电流 | 56 | 最大额定电流 | 56 A |
机械参数
| 镀层 | Gold | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 绝缘类型 | Without |
| 导线线规 | 12-14 AWG | 端接方式 | Crimp |
| 触点形式 | Straight | 触头类型 | Power |
| 安装类型 | 压接 | 插针或插孔 | Pin |
| 端子尺寸 | 8 | 电缆直径 | 3831 – 6529 |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 壳体镀层 | Nickel | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 包装数量 | 1000 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 兼容外壳尺寸（如TM-700等） | Metrimate 连接器 | 触点镀层 | 金 |
| 接触件表面处理 - 配合 | 金 | 法兰上方插针尺寸 | 3.4 mm [ .13 in ] |
| 接触镀层厚度 | .76 µm [ 30 µin ] | 护套（绝缘）厚度 | 1.25 µm [ 50 µin ] |
产品信息
| 备注 | 接合对象为料号 193535。 | 类型 | Power |
| 连接器性别 | PIN | 系列 | Multimate |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | Receptacle Housings |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 125 °C [ -67 – 257 °F ] |
文档与媒体
相关型号
213500-1
te connectivity / amp

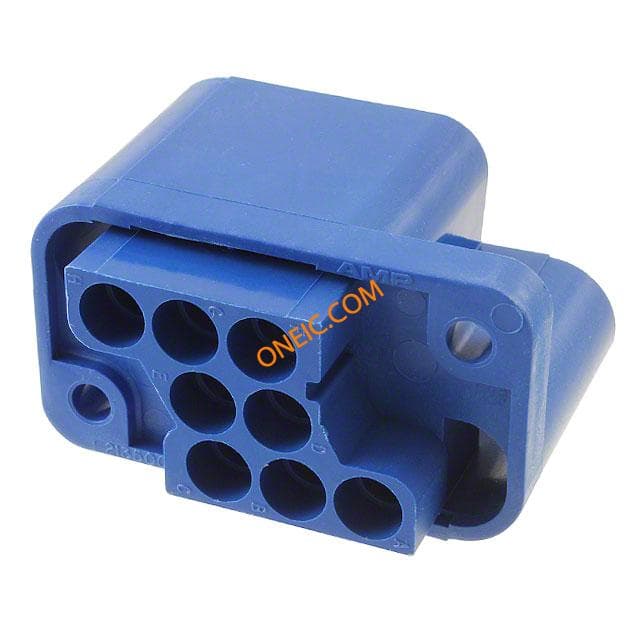

Conn Housing RCP 8 POS 8mm ST Pin & Socket Connectors RECPT 8 POWER Metrimate Connectors CONN RECEPT 8 POS METRIMATE Conn Housing RCP 8 POS 8mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = PowerNumber of Positions = 8ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECPT HSG,8 POWER,METRIMATE
