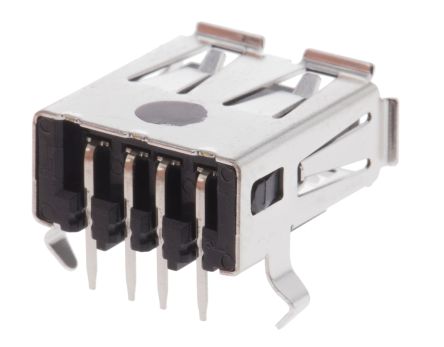

点击放大查看
1903814-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn USB Type A RCP 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tray USB Connectors STD 2.0 IND USB A 4P R/A RCPT 1 ROW Industrial Communication Products CONN RCPT USB TYPE A PCB R/A Connector, Rec, USB, R/A 1 Row Conn USB Type A RCP 4 POS 2.5mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Search Keywords:plug and play, hot pluggable, USB 1.0, USB 2.0, USB 3.0, data bus, Universal Serial Bus, IEEE 1394 Serial Bus, box to box, USB, micro, locking, lock, A-RJ45, A-RCA Jack, micro usb, mini usb USB 2.0 A CONNECTOR, RCPT, 4POS, R/A PCB CONNECTOR, USB A, RECEPTACLE, THT, R/A Conn;Data;USB;Recept;2.0;4Pos;1Port;RtAngle;ASer;Gold/Nickel Socket; USB A; on PCBs; THT; PIN:4; angled 90° TE Connectivity 1 端口 A 型 USB Type A 直 插座, 通孔 INDUSTRIAL USB REC ASSY R/A 1ROW |
| 分类 |
商业参数
| 产品 | USB Type A Connectors | 标准包装数量 | Trays |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| LED | Without | I/O 数量 | Not Submitted For Testing |
机械参数
| 尺寸 | Standard | 间距 | 2.5 mm |
| 重量 | 0 | 包装方式 | Tray |
| 方向 | Right Angle | 端接方式 | Solder |
| 外壳颜色 | Black | 尾部长度 | 2.84 |
| 安装类型 | Through Hole | 外壳镀层 | Tin over Nickel |
| 行程角度 | Straight | 连接器类型 | Without |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 锁定特性 | Without | 触头材料 | Copper Alloy |
| 包装数量 | Tray | 主要材料 | USB |
| 连接器 - 电缆 | socket | 端接样式 | PCB |
| 触点数 | 4 | 接触件端接 | Through Hole |
| 位数 | 4 | 恢复壁厚 | 1.57 |
| 触点材料 - 配合 | Gold over Nickel | 第一连接器安装类型 | :PCB |
| 行业认可的配合直径 | USB 2.0 | 触点镀层厚度 - 柱（配合端） | 0.762 |
产品信息
| SPG | 1 | 工作模式 | Single |
| 类型 | USB Type A | 连接器性别 | RCP |
| 系列 | A | 产品特性 | Board Lock |
| 制造商全称 | Tyco Electronics | 规格说明 | USB 2.0 |
| 端口数 | 1 | 单元数量 | 1 |
| 其他规格 | Printed Circuit Board | 装配配置 | Without Pick and Place Cover |
