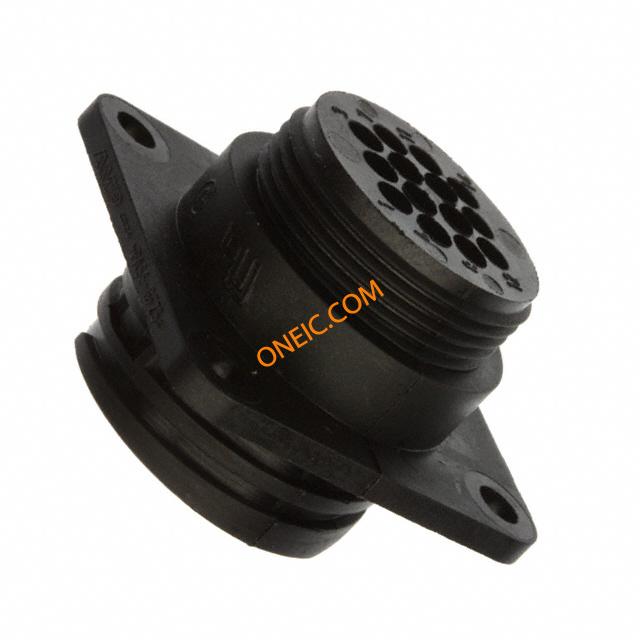

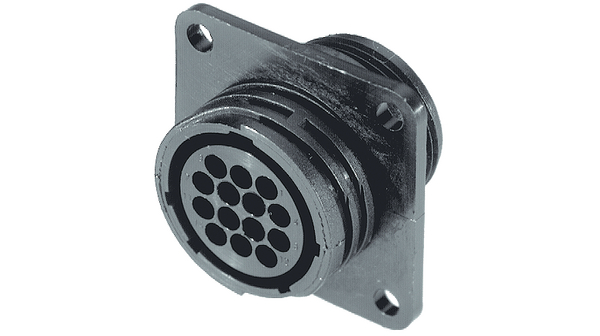

182641-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 14 POS Crimp ST Cable Mount Circular Plastic Connectors CONN RCPT CPC 14PS REV PANEL MT Housing,rcpt,series 1,shell size 17, 14W Standard Circular Connector 17-14 SQ FLNGE RECPT Conn Housing RCP 14 POS Crimp ST Cable Mount Product Highlights:ConnectorNumber of Positions = 14ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSING, 14WAY, STRAIGHT Housing,rcpt,series1,shellsize17,14W Connector: circular; Series: CPC Series 1; socket; female; PIN:14 Female receptacle series CPC 14-pin CPC 1 14P Female 17, 182641-1, TE Connectivity TE Connectivity 14 路 直 母 电缆安装 PCB 壳体 17-14 CPC SQ FLANGE RECPT RS |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | UL列名 | Recognized |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电阻 | None | 量程（°/s） | :TE - CPC Series |
| 通道数量 | 14.0 | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 深度 | 36.4mm | 宽度 | 36.4mm |
| 高度 | 36.4 mm | 长度 | 27.8mm |
| 密封型 | No | 重量 | 0.004 |
| 包装方式 | Bulk | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Housing |
| 接触镀层 | :- | 紧固类型 | Threaded Coupling |
| 安装样式 | Flange with Mounting Holes | 封装形式 | size 17 |
| 连接器样式 | Receptacle | 锁定特性 | threaded joint, external thread |
| 壳体材料 | Thermoplastic - GF | 总长度 | 27.8 mm |
| 包装数量 | 100 | 连接器 - 电缆 | socket |
| 第一触头极性 | Socket | 配接方向 | Keyed |
| 触点数 | 14 | 位数 | 0.0 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 外壳与棱镜材料 | thermoplastic | 第二连接器安装特性 | Reverse |
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Series 1 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Housings | 适配器系列 | CPC Series 1 |
| 单元数量 | 1 | 其他规格 | Without |
| 适用产品/相关产品 | Socket Contact Connector | ||
