1825610-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | BP1440004=BOOT, PUSHBUTTON Toggle, Pushbutton and Rocker Switches BP1440004=Boot, Pushbutton BP1440004=Boot, Pushbutton Search Keywords:Switches, Knobs, PCB, BOOTSEAL MPA3/MPS/MSPM TP BLACK Accessory Black 1/4-40 Thread Size Pushbutton Switch Boot Seal |
| 分类 |
商业参数
| 标准包装规格 | 100 | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 输入端 | 1/4 – 40 UNS-2B | 开关功能 | No |
机械参数
| 颜色 | Black | 密封型 | No |
| 基础油 | No | 螺纹尺寸 | 1/4-40 |
| 材料表面处理 | 黑色 | 绝缘颜色 | 黑色 |
| 兼容外壳尺寸（如TM-700等） | 按钮开关 | ||
产品信息
| 开关类型 | Pushbutton Switch | 照明类型 | No |
| 制造商全称 | Alcoswitch | 产品子类型 | 附件 |
| 附件类型 | Pushbutton Switch Boot Seal | 适用产品/相关产品 | MPS, TP, MPA3, MSPM Series |
环境参数
| 防护等级 | 防护罩 | ||
相关型号
MPA103C04
TE Connectivity / Alcoswitch
Pushbutton Switches SPST NO VERT LUG SEE758-0356MSP103C004

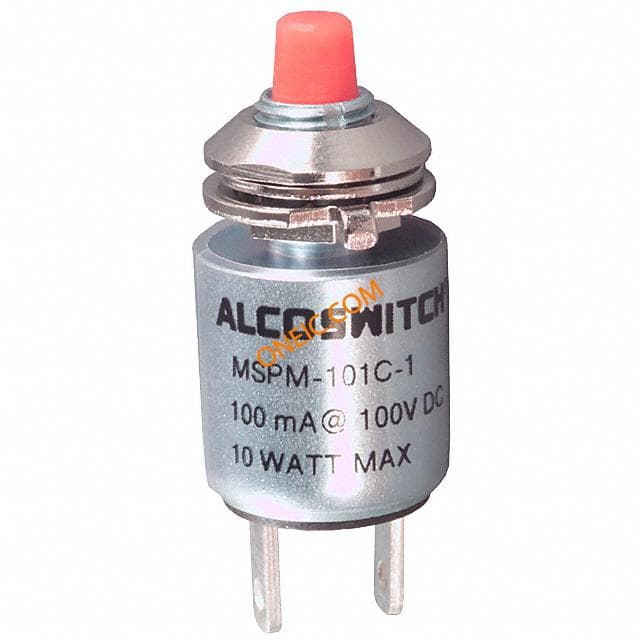

MSPM101CS104
TE Connectivity / Alcoswitch
Pushbutton Switches SWITCH PB SPST NO RED LUB SWITCH PUSH SPST-NO 0.1A 50V Switch,Pushbutton,PanelMount,1.0VAOpt Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece Product Highlights:Switch - MechanicalNot TactileSingle Pole - Single Throw Configuration (Pole-Throw)Contact Rating = 1.0 VA optimum [100mA max., 50 VDC max.]Process Sealed Switch,Pushbutton;PanelMount;1.0VAOptimum;1000V(RMS)(Min.);WireLug MSPM101CS104

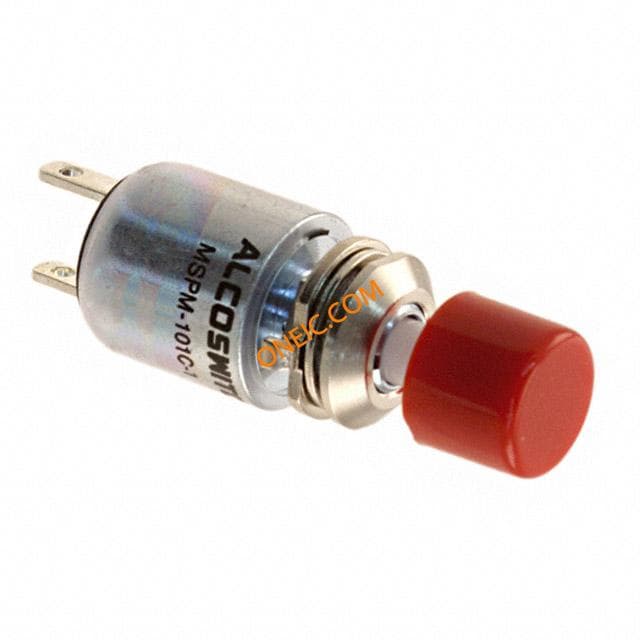

MSPM101C104
te connectivity / alcoswitch
Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece SWITCH PUSH SPST-NO 0.1A 50V Switch,Pushbutton,PanelMount,1.0VAOpt Switch; Pushbutton; Panel Mount; 1.0 VA Optimum; 1000 V (RMS) (Min.); Wire Lug Pushbutton Switches SPST-NO RED CAP LUG Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece Product Highlights:SwitchNot TactileSingle Pole - Single Throw Configuration (Pole-Throw)Contact Rating = 1.0 VA optimum [100mA max., 50 VDC max.]Process Sealed SWITCH, PUSHBUTTON, SPST-NO, 100mA Switch,Pushbutton;PanelMount;1.0VAOptimum;1000V(RMS)(Min.);WireLug MSPM101C104
MPA103B04
TE Connectivity / Alcoswitch
Pushbutton Switches SPST NC MOM SUBMIN

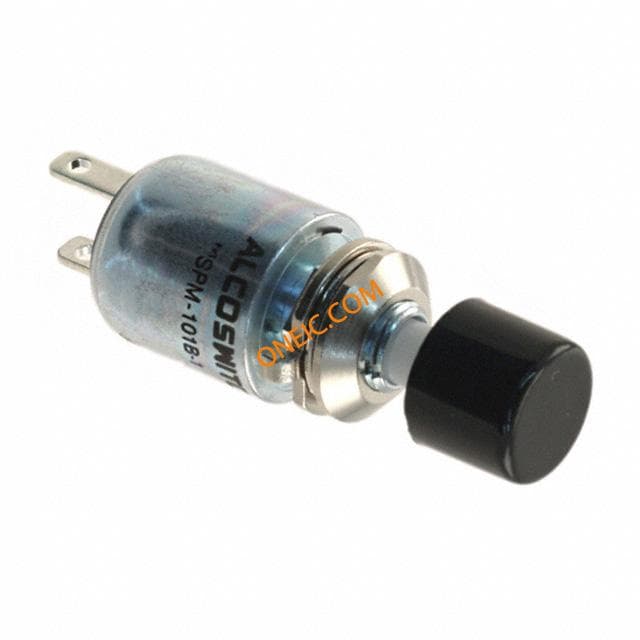

MSPM101B104
TE Connectivity / Alcoswitch
Pushbutton Switches SPST NC GLK LUG TERM SWITCH PUSH SPST-NC 0.1A 50V SWITCH, PUSHBUTTON, SPST-NC, 100mA

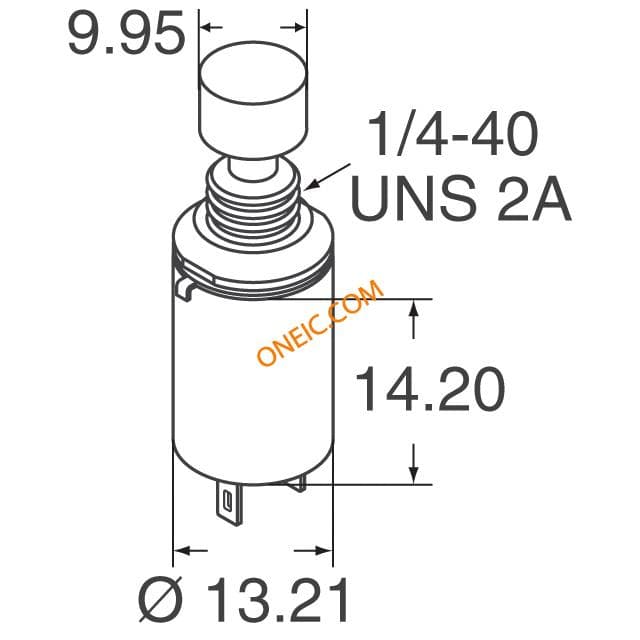

MSPM101B004
