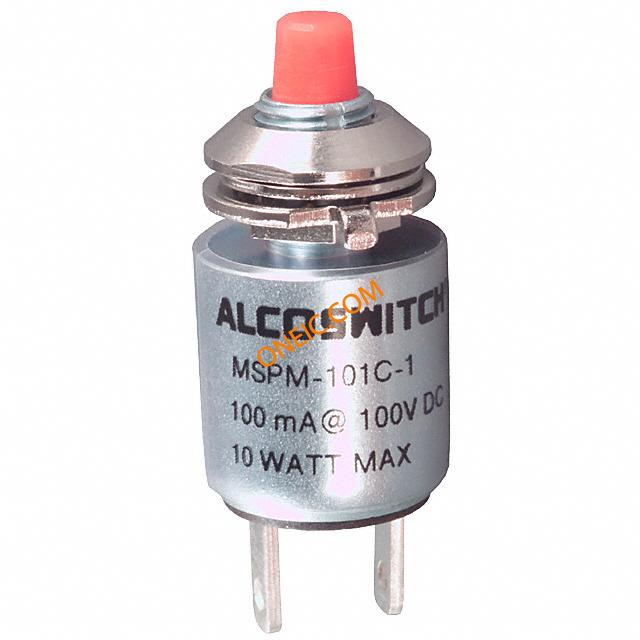

MSPM101CS104
| 制造商 | TE Connectivity Ltd. |
| 描述 | Pushbutton Switches SWITCH PB SPST NO RED LUB SWITCH PUSH SPST-NO 0.1A 50V Switch,Pushbutton,PanelMount,1.0VAOpt Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece Product Highlights:Switch - MechanicalNot TactileSingle Pole - Single Throw Configuration (Pole-Throw)Contact Rating = 1.0 VA optimum [100mA max., 50 VDC max.]Process Sealed Switch,Pushbutton;PanelMount;1.0VAOptimum;1000V(RMS)(Min.);WireLug MSPM101CS104 |
| 分类 |
商业参数
| 其他名称 | 1825539-4 | 零件号别名 | 1825539-4 |
| 产品类别 | Pushbutton Switches | 标准包装数量 | 100 |
合规参数
| RoHS | Compliant | 零件状态 | 1825539-4 |
| ESD保护 | Without | ||
电气参数
| 电路 | SPST-NO | 操作方式 | Momentary |
| 额定功率 | 1 VA | 额定电压 | 50V |
| 极数 | 1 | 开关功能 | Off-Mom |
| 元件数量 | Single | 额定直流电压 | 50 |
| 介电强度 | 1000VAC | 最大额定电流 | 100mA (DC) |
| 开关功能/额定值 | Momentary | 触点额定电流 | 100 mA |
| 电容比测试条件 | Red | ||
机械参数
| 宽度 | 4.064 mm [ .16 in ] | 高度 | No |
| 密封型 | Yes | 包装方式 | Bulk |
| 端接方式 | SolderLugs | 螺纹尺寸 | 1/4-40 UNS-2A |
| 触点形式 | SPST | 致动器类型 | Plunger for Cap |
| 安装类型 | Panel Mount, Rear | 端子类型 | Wire Lug |
| 执行器颜色 | Red | 衬套螺纹 | 1/4-40 |
| 接触镀层 | Gold | 安装样式 | Panel |
| 驱动力 | 113.4 – 198.5 g [ 4 – 7 oz ] | 执行器长度 | 4.06 mm [ .16 in ] |
| 插入件材料 | 铜合金 | 壳体材料 | Steel |
| 执行器材料 | Polyamide | 端接样式 | Solder Lug |
| 按钮样式/尺寸 | Extended | 位数 | 1 |
| 按钮/帽颜色 | Red | 衬套/护套类型 | Threaded |
| 安装孔直径 | 0.25In. | 典型触点布局 | SPST-NO |
| 面板开孔尺寸（外形） | Circular - 6.35mm Dia | 外壳与棱镜材料 | Steel |
产品信息
| 类型 | Standard | 系列 | MSPM |
| 产品特性 | Audible Click | 功能 | NO, Momentary |
| 开关类型 | 按钮 | 照明类型 | No |
| 产品子类型 | 开关 | 配置 | Single Pole - Single Throw |
| 电气寿命 | 50,000 Cycles | 联数 | No |
| 其他规格 | 可听见 | ||
环境参数
| 防护等级 | No | 温度额定值 | Standard |
| 工作温度 | -10°C ~ 80°C | ||
文档与媒体
相关型号
G12C
TE Connectivity / Alcoswitch
Switch Accessories BUTTON GUARD CHROME GUARD PB 1/4-40 CHROME BRASS Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;ChromedBrass;Plain;1/4to40;C12Cap,C22Cap G12C=BUTTON GUARD CHROME
G12A
TE Connectivity / Alcoswitch
Switch Accessories CLR ALUM BTN GRD PLN GUARD PB 1/4-40 CLEAR ALUMINUM Guard,Guard,Clear,Plain,1/4to40,C12,C22 Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;Clear;Plain;1/4to40;C12Cap,C22Cap G12A=BUTTON GUARD ALUM
C23004
TE Connectivity / Alcoswitch

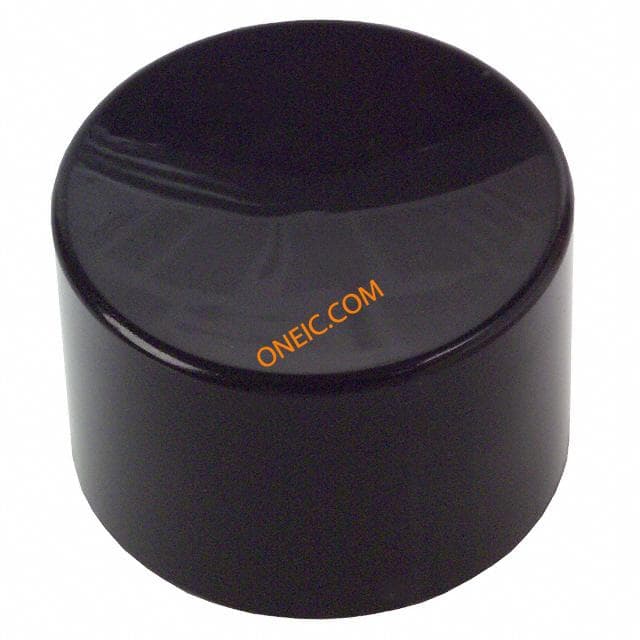

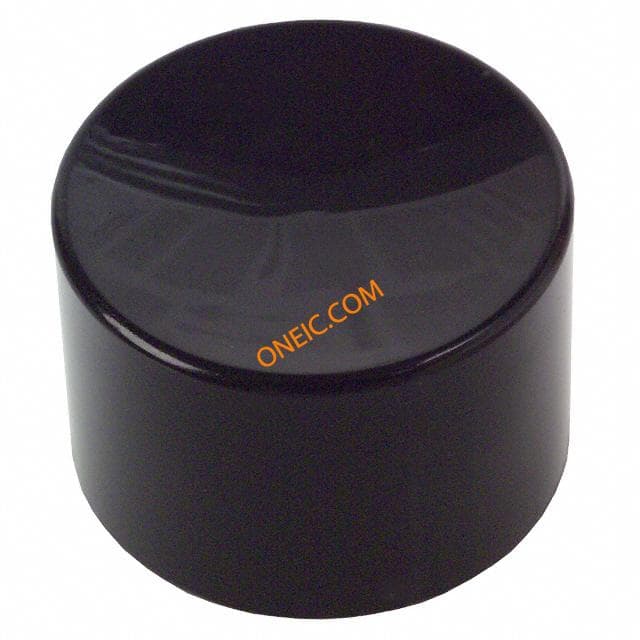

Switch Accessories RND SNAP FIT PUSH BT BLACK CAP CAP PUSHBUTTON ROUND BLACK CapforPushbuttonSwitch,Black Switch Access Push Button Switch Boot Seal SWITCH CAP CapforPushbuttonSwitch,Black,FitsMPS/MSPM/MPE/MPA6Series
