点击放大查看

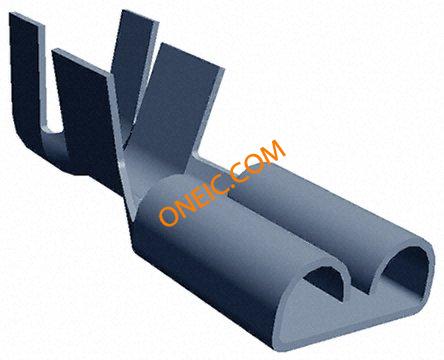

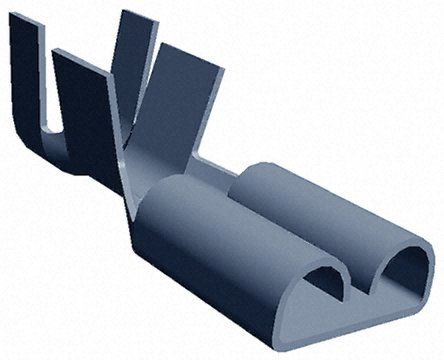

180384-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-12AWG F 20.5mm 7.5mm Tin Loose Piece Terminals FASTIN-FASTON REC. .250 SERIES Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT 12-10AWG .250 TAB Terminal Rec 6.35mm 12-10AWG Fastin-on Quick Disconnect Terminal 10-12AWG F 20.5mm 7.5mm Tin Loose Piece Product Highlights:ContactContact Gender = ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 3.00-6.00² [12-10] mm [AWG]Insulation Diameter = 3.43-5.08 [.135-.200] mm [in]Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TerminalRec6.35mm12-10AWGFastin-on TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FF 250 REC 4-6MM2 TPPB LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | None | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 否 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 250 | 最大频率 | Single |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 表面处理 | Tin | 长度 | 20.1mm |
| 材料（通用） | Phosphor Bronze | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.30 [0.012] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.303" (7.70mm) | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 6mm² | 电缆材料 | Yes |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 封装形式 | Multiple | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 磷青铜 | 插入力 | Normal |
| 触头材料 | Phosphor Bronze | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Loose Piece | 导线端接方式 | No |
| 绝缘高度 | With | 端接样式 | 母端 |
| 第一触头极性 | Female | 适用端子尺寸 | 3.4 – 5.1 mm [ .135 – .2 in ] |
| 绝缘直径 | 3.43-5.08 [.135-.200] | 绝缘材料 - 类型 | No |
| 镀层厚度（通用） | 1 | 总厚度 | .3 mm [ .012 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 10AWG |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Terminal | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
环境参数
| 工作温度 | -30 – 105 | ||
文档与媒体
相关型号
180941
TE Connectivity AMP Connectors
Conn Housing RCP 3 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING 3CIRCUIT Housing 3 way Receptacle Fastin-Faston Terminals 3 CIR FF RCPT HSG N Conn Housing RCP 3 POS Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 3Tab Fit = 6.35 mmLoose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONNECTOR HOUSING, RCPT, 3 WAY, NYLON Housing3wayReceptacleFastin-Faston Terminals cover; female; natural; ways:3 Housing for FASTON receptacles 6.30 mm / 8.45 mm Poles 3 FASTIN-FASTON, 180941, TE Connectivity TE Connectivity FASTIN-FASTON .250 系列 3 触点 尼龙 压接外罩 FF 250 REC HSG 3P NYLON NAT
1-626040-0
te connectivity / amp
Conn Housing 5 POS ST Relay Sockets & Hardware RELAY BASE MOLDING Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING .250 5POS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 5Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on
521743-1
te connectivity / amp
250 FASTIN-FASTON RCPT HSG Conn Housing 250FASTIN-FASTONRCPTHSG Headers & Wire Housings 250 FASTIN-FASTON RCPT HSG 521743-1
880191-1
te connectivity / amp
Conn Housing RCP 5 POS ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .110/.250 5POS Headers & Wire Housings 5W FASTIN-ON REC. H
1-480281-0
te connectivity / amp
Conn Housing RCP 6 POS 9.14mm ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN HOUSING RCPT 6POS .250 Headers & Wire Housings 6 CIR FF REC HSG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 6Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on 6 Circuit Faston Housing Receptacle w/ Tabs FF 250 REC HSG 6P NYLON BLACK
880110
TE Connectivity AMP Connectors
Connector Accessories Receptacle Housing Nylon Natural Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 4POS NATRL Headers & Wire Housings ISOLADOR Conn Housing PL 4 POS 10.8mm Crimp ST Cable Mount Loose Piece Conn Housing PL 4 POS 10.8mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingHousing Gender = PlugHousing Accepts Contact Type = ReceptacleNumber of Circuits = 4Tab Fit = 6.35 mmSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTON HOUSING RECEPTACLE NAT NYLON
180905-5
te connectivity / amp
Connector Accessories Receptacle Housing Polyamide 6/6 Black Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 1POS BLACK
480054-4
te connectivity / amp
Conn Housing RCP 1 POS ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT SNGLE CIR FAST .250 Terminals RCPT SNGLE CIR .250 Conn Housing RCP 1 POS ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 1Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on RECEPTACLE HOUSING, FASTIN-FASTON CONN 1 Circuit 6.35mm Nylon Faston Receptacle TE Connectivity 250 系列 1 触点 黑色 尼龙 压接端子外壳 FF 250 REC HSG 1P NYLON BLACK
280543
TE Connectivity AMP Connectors
Conn Housing RCP 2 POS ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 2POS CLEAR Headers & Wire Housings 250 2-WAY FASTIN FASTON HSG. Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 2Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on
737014
TE Connectivity AMP Connectors
Connector Accessories Receptacle Housing Polyamide 6.6 Natural Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING 1CIRC NATURAL Housing 1 way Rec 6.35mm Fastin-Faston Headers & Wire Housings 1P RECPT HSG NAT HOUSING1WAYREC6.35MM Housing1wayRec6.35mmFastin-Faston TE Connectivity FASTIN-FASTON .250 系列 压接端子盖
925324-2
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING 1POS .250 1 way receptacle housing,0.25in Headers & Wire Housings TAB HOUSING Natural Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 1Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONNECTOR, HOUSING, PLUG, 1 WAY 1WRECEPTACLEHOUSING TE Connectivity AMP FASTIN-FASTON 系列 1 触点 尼龙 66 压接端子外壳 FF 250 PLUG HSG 1P NYLON CLEAR
180907
TE Connectivity AMP Connectors
Conn Housing RCP 2 POS 7.4mm Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECPT FASTIN-FAST 2CIR .250 Headers & Wire Housings 2P FF RCPT HSG N NAT Conn Housing RCP 2 POS 7.4mm Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 2Tab Fit = 6.35 mmLoose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONNECTOR HOUSING, RCPT, 2WAY, POLYAMIDE RECEPTACLEHOUSING,.250SERIES,FASTIN-FASTON,2POSITION,NATURAL Fastin-Faston 2 Circuit 6.35 mm Receptacle Housing Housing for FASTON receptacles 7.4 mm Poles 2 FASTIN-FASTON, 180907, TE Connectivity FF 250 REC HSG 2P NYLON NAT
927203-2
te connectivity / amp
Conn Housing RCP 2 POS 10mm Crimp ST Positive Lock Connectors CONN RCPT HSG 2POS .250 YELLOW
163007-5
te connectivity / amp
Conn Housing RCP 8 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 8POS BLACK Headers & Wire Housings 8P.FASTIN-ON RC.HSG 8P.FASTIN-ON RC.HSG

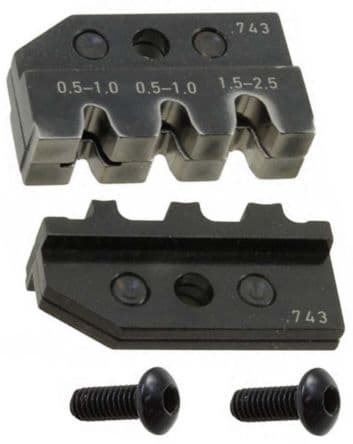

539751-2
