点击放大查看

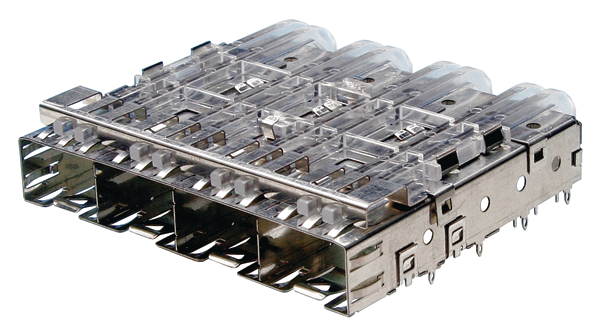

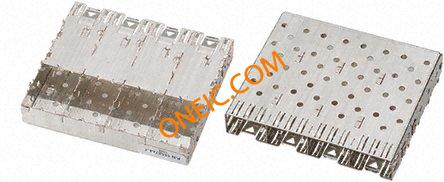

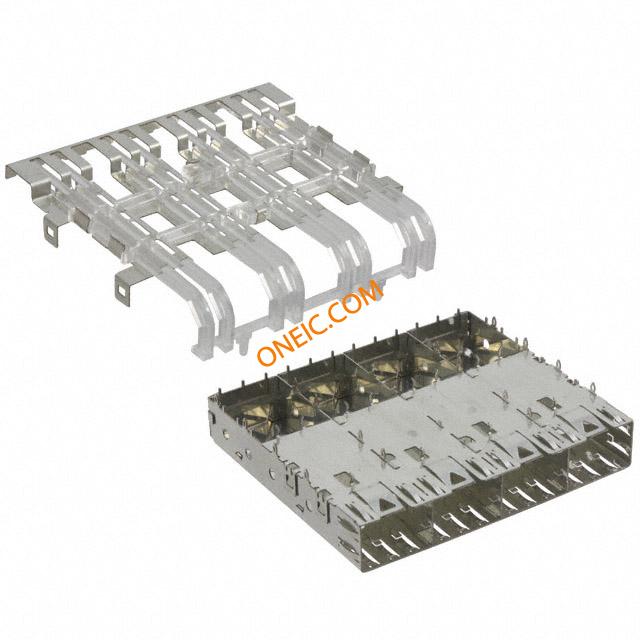

1761008-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 4 Port Press Fit SFP Cage Right Angle Copper Alloy Tin Over Nickel Tray Pluggable Connectors, Cages, Transceivers & Accessories CONN SFP CAGE 1X4 W/LIGHT PIPE SFP,Ganged cage,pressfit,1sided,1x4 I/O Connectors 1 X 4 SFP CAGE WITH LIGHT ASSY Connector Accessories 4 Port SFP Cage Assembly Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish ... Connector Accessories 4 Port SFP Cage Assembly Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish Tray Product Highlights:SFP ApplicationCageEMI Cage Type = GangedWith Light Pipe1 x 4 ConfigurationSearch Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO SPFCageandLightPipeKit,1x4 SFP cage 1x4, lightpipesP, 1761008-1, TE Connectivity |
| 分类 |
商业参数
| 产品 | SFP Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 深度 | 55.63 mm | 间距 | 14.25 mm |
| 高度 | 13 mm | 镀层 | Tin over Nickel Flash |
| 直径 | Not Required mm | 包装方式 | Tray |
| 发光颜色 | With | 端接方式 | Press-Fit |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | SFP |
| 接触镀层 | Tin over Nickel | 安装样式 | Single Sided |
| 连接器样式 | Cage, Ganged (1 x 4) | 触头材料 | Copper Alloy |
| 壳体材料 | Copper | 总长度 | 56.5 mm |
| 框架材料 | Copper Alloy | 包装数量 | Tray |
| 主要材料 | SFP(SmallFormFactorPluggable) | 端接样式 | Press Fit |
| 触点数 | 80 | 端子柱长度 | 2.05 [0.081] |
产品信息
| 类型 | SFP Cage | 连接器性别 | Female |
| 系列 | SFP | 产品特性 | EMI Shielded, Light Pipe |
| 卡类型 | Ganged | 描述 | 4 ports, with lightpipes |
| 制造商全称 | AMP | 产品子类型 | Cage |
| 配置 | 1 x 4 | 端口数 | 4 |
| 射频系列/标准 | 1761008 | 加载位置数 | 80 |
文档与媒体
