点击放大查看

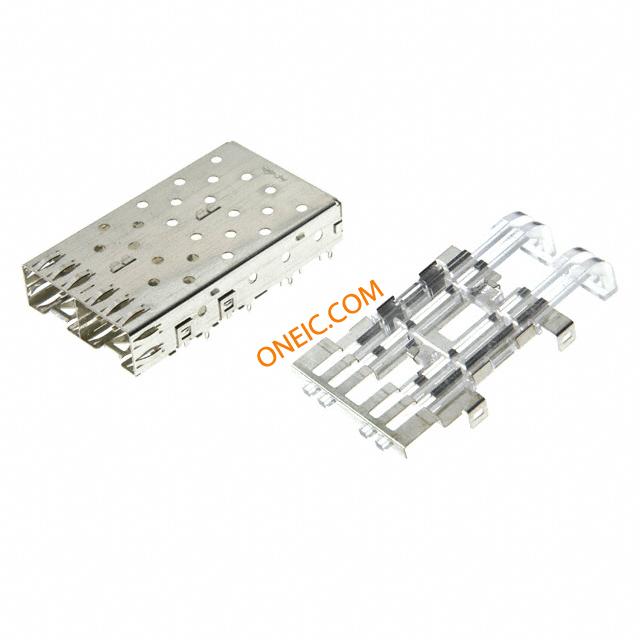

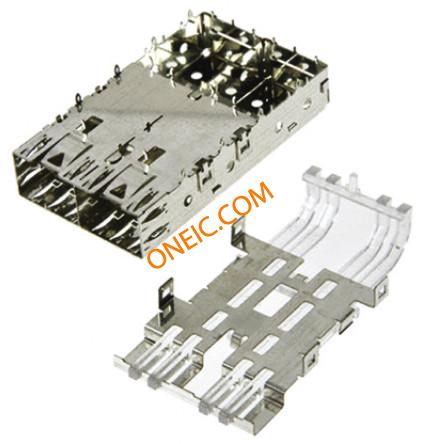

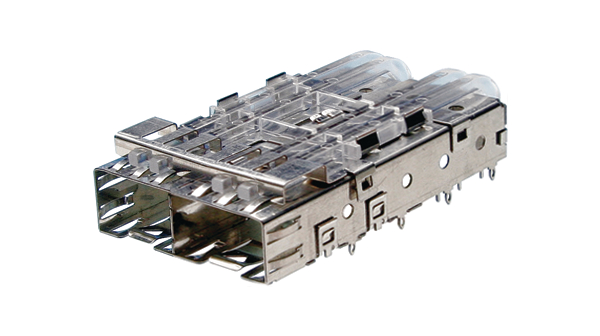

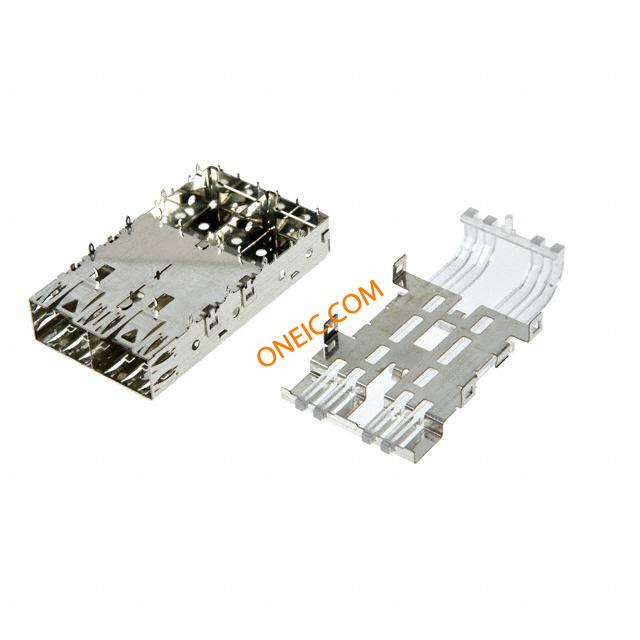

1761007-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 2 Port Press Fit SFP Cage Right Angle Copper Alloy Tin Over Nickel Tray Pluggable Connectors, Cages, Transceivers & Accessories CONN SFP CAGE 1X2 W/LIGHT PIPE SFP cage assembly with light pipe,2 port I/O Connectors 1 X 2 SFP CAGE WITH LIGHT ASSY Connector Accessories 2 Port SFP Cage Assembly Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish ... Connector Accessories 2 Port SFP Cage Assembly Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish Tray Product Highlights:SFP ApplicationCageCage Type = GangedWith Light Pipe1 x 2 ConfigurationSearch Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO Single Sided 1 x 2 Configuration Press Fit SFP Ganged Cage SFP cage 1x2, lightpipesP, 1761007-1, TE Connectivity TE Connectivity SFP 系列 2 端口 直 SFP 笼, 按压安装 端接, 13.34 x 28.96 x 50mm |
| 分类 |
商业参数
| 产品 | SFP Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 间距 | 14.25 mm | 宽度 | 28.96mm |
| 高度 | 13.34mm | 长度 | 50mm |
| 镀层 | Tin over Nickel Flash | 包装方式 | Tray |
| 发光颜色 | With | 方向 | 直 |
| 端接方式 | Press-Fit | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | SFP | 接触镀层 | Tin over Nickel |
| 安装样式 | Single Sided | 连接器样式 | Cage, Ganged (1 x 2) |
| 总宽度 | 28.96mm | 触头材料 | Copper Alloy |
| 壳体材料 | Copper | 总长度 | 50mm |
| 框架材料 | Copper Alloy | 包装数量 | Tray |
| 端接排数 | 按式 | 端接样式 | Press Fit |
| 面板尺寸 | 13.34 x 28.96 x 50mm | 触点数 | 2 |
| 端子柱长度 | 2.05 [0.081] | 外壳尺寸，连接器布局 | 13.34 x 28.96 x 50mm |
产品信息
| 类型 | SFP Cage | 连接器性别 | Female |
| 系列 | SFP | 产品特性 | EMI Shielded, Light Pipe |
| 卡类型 | Ganged | 描述 | 2 ports, with lightpipes |
| 主要用途 | EMI Shielded, Light Pipe | 制造商全称 | AMP |
| 产品子类型 | Cage | 配置 | 1 x 2 |
| 端口数 | 2 | 射频系列/标准 | 1761007 |
| 输出配置 | Through Hole, Right Angle | ||
