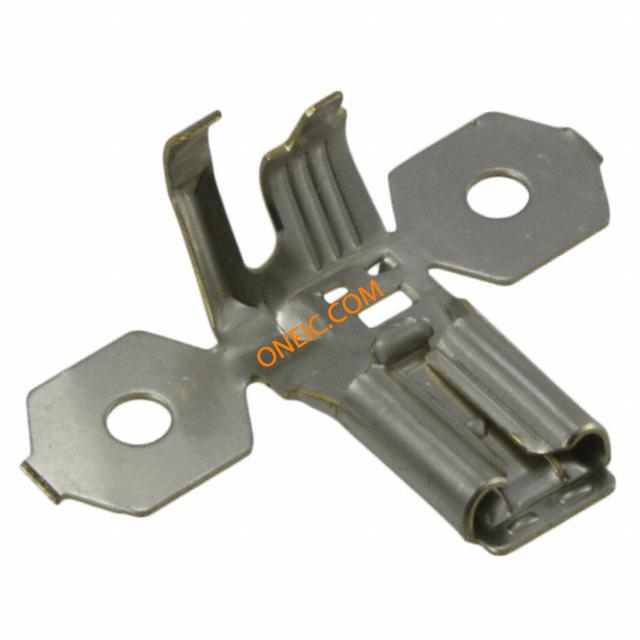

175019-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 16-22AWG RCP 15.9mm 6.8mm Pre-Tin Strip Automotive Connectors 187 FLAG REC 22-16 Positive Lock Connectors CONN RCPT .187 FLAG 22-16AWG Quick Disconnect Terminal 16-22AWG RCP 15.9mm 6.8mm Pre-Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmLine = AMP POSITIVE LOCK EX SeriesReceptacle Style = FlagWire Range = 0.30-1.40² [22-16] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL EX MKII 187 REC 22-16AWG PTBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A100920CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | 4,000 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 最大电压 | 250 |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 颜色 | Not Required | 深度 | 6.8 mm |
| 表面处理 | Pre-Tin | 长度 | 15.9 mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.51 [.187 x .020] |
| 厚度 | 0.28 [0.011] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Not Insulated | 插片长度 | 0.248" (6.30mm) |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Right |
| 插片厚度 | 0.050" (1.27mm) | 端子类型 | Angled - 90°, Flag |
| 电缆材料 | Stranded | 连接器类型 | No |
| 接触镀层 | Tin | 安装样式 | Wire |
| 壳体镀层 | Pre-Tin | 连接器样式 | Flag |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 总长度 | AMP POSITIVE LOCK EX Series |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | Crimp | 适用端子尺寸 | 1.7 – 4.32 mm [ .066 – .17 in ] |
| 绝缘直径 | 1.70-4.32 [.066-.170] | 绝缘材料 - 类型 | No |
| 总厚度 | .3 mm [ .011 in ] | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .5 mm [ .019 in ] | 线规或范围 - AWG | 22-16 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | 外径-未扩张 | 4.32 mm [ .17 in ] |
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 编码、键控 | No | 产品子类型 | Receptacle |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
文档与媒体
相关型号
1-178708-1
te connectivity / amp
