点击放大查看

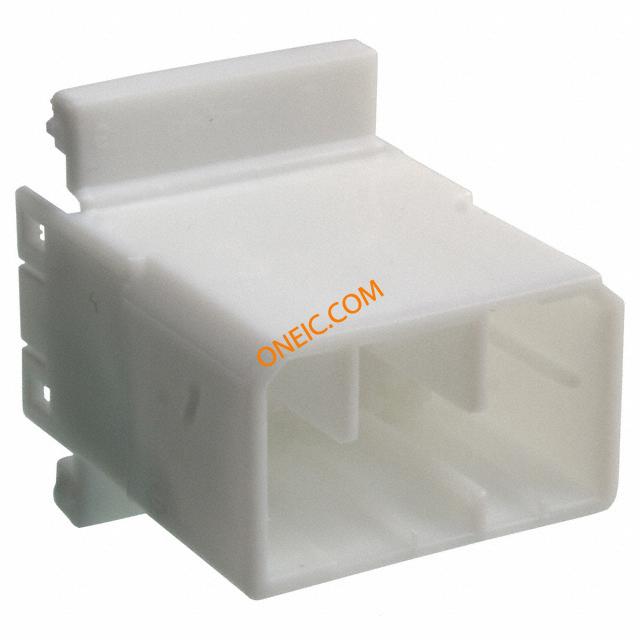

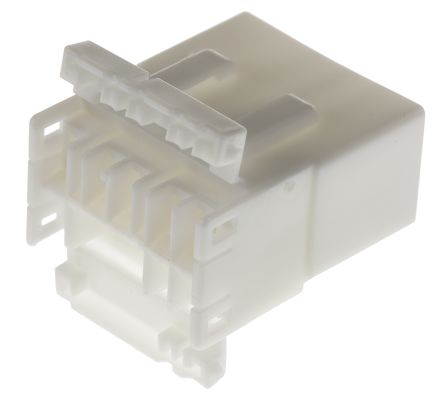

174931-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 8 POS Crimp ST Cable Mount MULTILOCK Connectors and Contacts CONN RCPT CAP HSNG 8POS DL WHITE 8-way Multilock 070 2-row cap housing Headers & Wire Housings 070 MLC W-W CAP HSG Conn Housing RCP 8 POS Crimp ST Cable Mount Product Highlights:HousingReceptacle (Cap)Receptacle Configuration = 070Number of Rows = 2Number of Positions = 8Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, 8-wayMultilock0702-rowcaphousing TE Connectivity Multilock 070 系列 2 行 8 路 直 母 电缆安装 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 开关功能 | Unlatched | ||
机械参数
| 颜色 | White | 深度 | 31.4mm |
| 间距 | 3.5 mm | 长度 | 25.7mm |
| 包装方式 | Tray | 方向 | 直 |
| 排间距 | 0.232" (5.90mm) | 触头类型 | Tab |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Free Hanging | 排数 | 2 |
| 连接器用途 | 70 | 锁定特性 | Hinge Lock |
| 壳体材料 | PBT | 面板安装类型 | Without |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 第二连接器加载位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 70 |
| 编码、键控 | No | 产品子类型 | Housing |
| 连接类型 | Wire | 专有名称 | MULTILOCK |
| 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector | ||
