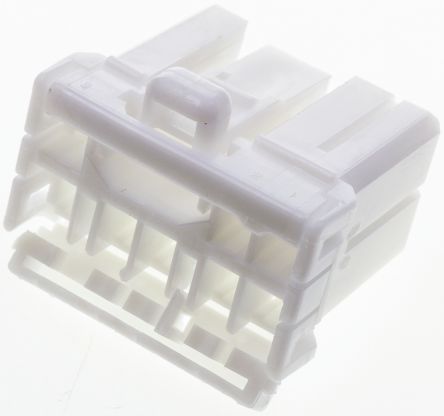

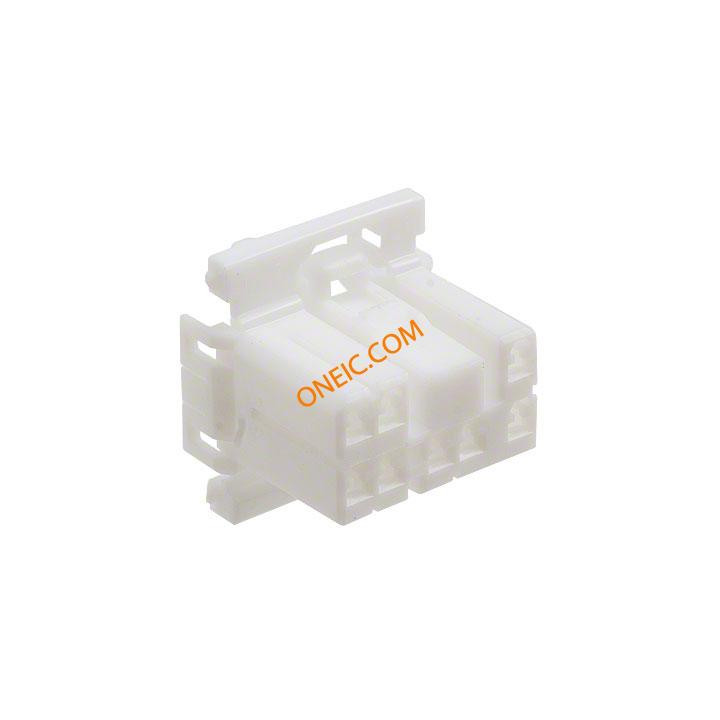

173850-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 8 POS Crimp ST Cable Mount MULTILOCK Connectors and Contacts CONN PLUG HSNG 8POS DUAL WHITE 8-way Multilock 070 2-row plug housing Headers & Wire Housings 8 POS. MULTILOCK Conn Housing PL 8 POS Crimp ST Cable Mount Product Highlights:HousingPlug070 Plug ConfigurationNumber of Rows = 2Number of Positions = 8Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, WIRE-BOARD CONNECTOR, 8POS, 2.5MM 8-wayMultilock0702-rowplughousing TE Connectivity Multilock 070 系列 2 行 8 路 直 公 PCB 壳体 070 MULTILOCK PLUG 8P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 量程（°/s） | :TE - MULTI-LOCK Series | 开关功能 | Unlatched |
机械参数
| 颜色 | White | 深度 | 21.6mm |
| 间距 | 2.54 mm | 宽度 | 26mm |
| 高度 | 26 mm | 长度 | 24.8mm |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 排间距 | 0.232" (5.90mm) | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 锁定特性 | Hinge Lock | 壳体材料 | PBT |
| 总长度 | 24.8 mm | 面板安装类型 | Without |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 连接器/触点类型 | 70 | 第二连接器加载位数 | 8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 70 |
| 编码、键控 | No | 产品子类型 | Housing |
| 连接类型 | Wire | 专有名称 | MULTILOCK |
| 应用细节 | Wire-to-Wire | 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector |
环境参数
| 工作温度 | -30C to 105C | ||
