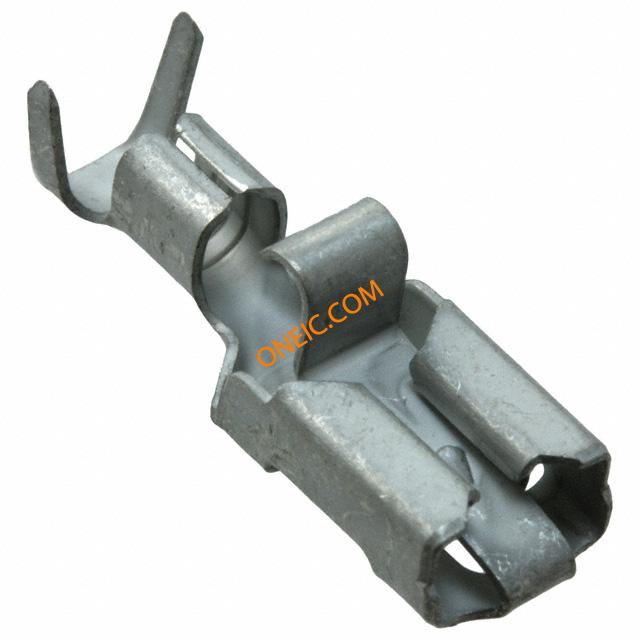

170266-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-12AWG RCP 22.6mm Tin Loose Piece Headers & Wire Housings POSITIVE LOCK REC LP Positive Lock Connectors CONN UNINS RCPT 10-12AWG 0.250 Posi Lock .250,Contact,Rcp,3.00-6.00mm² Quick Disconnect Terminal 10-12AWG RCP 22.6mm Tin Loose Piece Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 3.00-6.00² [12-10] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PosiLock.250,Contact,Rcp,3.00-6.00mm² TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.81mm POSITIVE LOCK RECEPTACLE ELECTRO TPBR |
| 分类 |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | Tin | 长度 | 22.1mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.38 [0.015] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 释放力 | .7 – 10.2 | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 6mm² |
| 电缆材料 | Stranded | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 低 | 操作力 | 7 – 100 |
| 触头材料 | Brass | 总长度 | Mark I |
| 包装数量 | Loose Piece | 导线端接方式 | No |
| 端接样式 | 母端 | 适用端子尺寸 | 3.81 – 5.08 mm [ .15 – .2 in ] |
| 绝缘直径 | 3.78-4.90 [.149-.192] | 绝缘材料 - 类型 | No |
| 总厚度 | .6 mm [ .023 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 10AWG | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 外径-未扩张 | 5.08 mm [ .2 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | .250 |
| 编码、键控 | No | 制造商全称 | MKI250Series |
| 产品子类型 | Receptacle | ||
