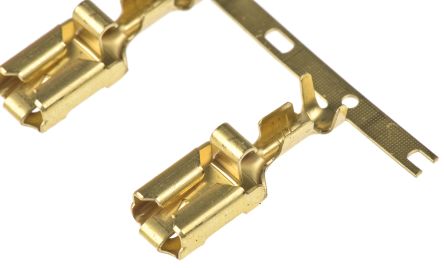

170233-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-20AWG F 22.1mm 7.4mm Strip Terminals RCPT 20-14 AWG Positive Lock Connectors CONN RCPT 20-14AWG STR .250 Posi Lock 312,Contact,Rcp,0.50-2.00mm² Contact, Pos Lock, Female, 6.35 x 0.81 Quick Disconnect Terminal 14-20AWG F 22.1mm 7.4mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Contact,PosLock,Female,6.35x0.81 TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.81mm PL 250 REC 0.5-2.27 MM2 BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107092CT |
| 产品类别 | Terminals | 标准包装数量 | 2,000 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | None | 长度 | 22.1mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | 分离式导线 | 绝缘类型 | Non-Insulated |
| 导线线规 | 14-20 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2.27mm² |
| 电缆材料 | Stranded | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | 无镀层 | 连接器样式 | Straight |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 低 | 厚度（最大） | 0.38 [0.015] |
| 触头材料 | Brass | 总长度 | Mark I |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | 母端 | 适用端子尺寸 | 2.1 – 3.4 mm [ .082 – .134 in ] |
| 绝缘直径 | 2.20-3.10 [.086-.122] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 14AWG | 线规或范围 - mm² | 0.50-2.00² [20-14] |
| 外径-未扩张 | 3.4 mm [ .134 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | 250 |
| 编码、键控 | No | 制造商全称 | MKI250Series |
| 产品子类型 | Receptacle | ||
环境参数
| 工作温度 | -40 – 105 | ||
文档与媒体
相关型号
926646-1
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Conn Housing RCP 8 POS 9.1mm Crimp ST Product Highlights:HousingHousing Type = Housing - TabTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
100100-1
te connectivity / amp
Conn Housing RCP 2 POS 6.3mm Crimp ST Positive Lock Connectors CONN RCPT 2POS W/POSITIVE LOCK Headers & Wire Housings 02P RECPT HSG Positive Lock Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = ReceptacleTab Fit = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,

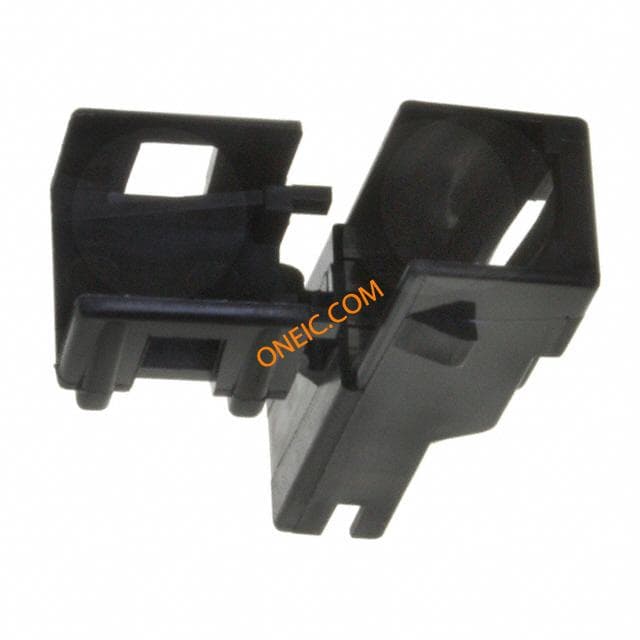

520961-1
