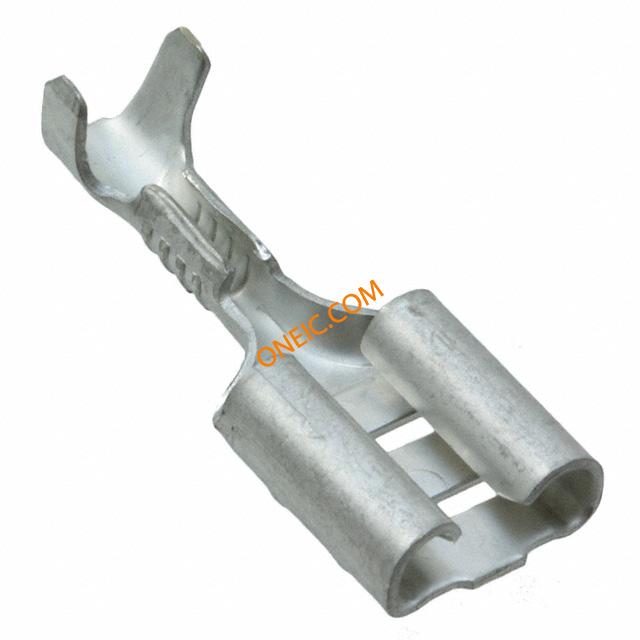

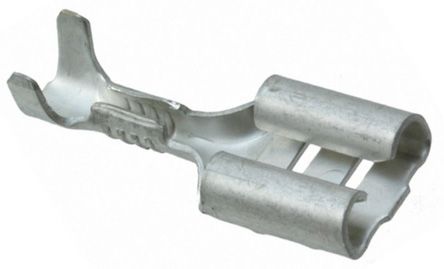

170187-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 20.45mm 7.62mm Tin Loose Piece FASTON Uninsulated Receptacles & Housings TERM RCPT 22-18AWG .250 CRIMP Headers & Wire Housings 250SER FASTON REC LP Receptacleterminal,FASTON250,AWG22-18 TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.8mm, 镀锡触芯 FASTON 250 RECEPTACLE 22-18 AWG TPBR |
| 分类 |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 19.05mm |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.80 [.250 x .031] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 释放力 | 2.5 |
| 插片厚度 | 0.031" (0.79mm) | 端子类型 | Standard |
| 电缆直径 | 0.8mm² | 电缆材料 | Stranded |
| 连接器类型 | 快速断开终端, 母座 | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 操作力 | 24.5 |
| 触头材料 | Brass | 总长度 | Commercial |
| 包装数量 | Loose Piece | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | 2.3 – 3.3 mm [ .09 – .13 in ] |
| 绝缘直径 | 2.30-3.30 [.091-.129] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.8mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 18AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 第二连接器安装特性 | No | 外径-未扩张 | 3.3 mm [ .13 in ] |
产品信息
| 连接器性别 | Female | 系列 | FASTON .250 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
