点击放大查看
170108-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 20.5mm 7.5mm Tin Loose Piece Terminals F-F .250 L.P. STR 1 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 14-18AWG 0.250 Quick Disconnect Terminal 14-18AWG RCP 20.5mm 7.5mm Tin Loose Piece Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.10-4.10 [.122-.161] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 250 REC 18-14AWG TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 12,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Insulated |
| 插片长度 | 0.303" (7.70mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Multiple |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 厚度（最大） | 0.81 [0.032] |
| 触头材料 | Brass | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Loose Piece | 导线端接方式 | No |
| 绝缘高度 | With | 端接样式 | Crimp |
| 适用端子尺寸 | 3.1 – 4.1 mm [ .122 – .161 in ] | 绝缘直径 | 3.10-4.10 [.122-.161] |
| 绝缘材料 - 类型 | No | 总厚度 | .81 mm [ .032 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | ||
产品信息
| 连接器性别 | Female | 系列 | 250 |
| 产品子类型 | Receptacle | ||
文档与媒体
相关型号
1-626040-0
te connectivity / amp
Conn Housing 5 POS ST Relay Sockets & Hardware RELAY BASE MOLDING Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING .250 5POS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 5Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on
521743-1
te connectivity / amp
250 FASTIN-FASTON RCPT HSG Conn Housing 250FASTIN-FASTONRCPTHSG Headers & Wire Housings 250 FASTIN-FASTON RCPT HSG 521743-1
880191-1
te connectivity / amp
Conn Housing RCP 5 POS ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .110/.250 5POS Headers & Wire Housings 5W FASTIN-ON REC. H
880110
TE Connectivity AMP Connectors
Connector Accessories Receptacle Housing Nylon Natural Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 4POS NATRL Headers & Wire Housings ISOLADOR Conn Housing PL 4 POS 10.8mm Crimp ST Cable Mount Loose Piece Conn Housing PL 4 POS 10.8mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingHousing Gender = PlugHousing Accepts Contact Type = ReceptacleNumber of Circuits = 4Tab Fit = 6.35 mmSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTON HOUSING RECEPTACLE NAT NYLON
280771
TE Connectivity AMP Connectors
Conn Housing RCP 2 POS ST FASTON Uninsulated Receptacles & Housings CONN RCPT HSG .250/.375 2POS Headers & Wire Housings 250-375 FASTIN-ON REC HSG FF 250 & 375 REC HSG 2P NYLON NAT
925324-1
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 1POS BLACK Headers & Wire Housings 1 POS FF RECP. HSG.(BLACK) Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 1Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 250 REC HSG 1P NYLON BLACK
180905-5
te connectivity / amp
Connector Accessories Receptacle Housing Polyamide 6/6 Black Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 1POS BLACK
280543
TE Connectivity AMP Connectors
Conn Housing RCP 2 POS ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 2POS CLEAR Headers & Wire Housings 250 2-WAY FASTIN FASTON HSG. Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 2Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on
180900-5
te connectivity / amp
Connector Accessories Receptacle Housing Polyamide Black Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 4POS BLACK Headers & Wire Housings FIN-ON REC. HSG 4P. Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 4Tab Fit = 6.35 mmLoose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 250 REC HSG 4P NYLON BLACK
927203-2
te connectivity / amp
Conn Housing RCP 2 POS 10mm Crimp ST Positive Lock Connectors CONN RCPT HSG 2POS .250 YELLOW
163007-5
te connectivity / amp
Conn Housing RCP 8 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 8POS BLACK Headers & Wire Housings 8P.FASTIN-ON RC.HSG 8P.FASTIN-ON RC.HSG
927203-1
te connectivity / amp
Conn Housing RCP 2 POS 10mm Crimp ST Positive Lock Connectors CONN RCPT HSG 2POS .250 BLACK Headers & Wire Housings 2P FF FLACHST GEH FF 250 TAB HSG 2P NYLON BLACK
626240-2
te connectivity / amp
Conn Housing RCP 5 POS ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HSG .250 5POS BLACK
163007-1
te connectivity / amp
Conn Housing RCP 8 POS Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING .250 8POS RED Headers & Wire Housings 8P.FASTIN-ON RC.HSG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:Receptacle HousingNumber of Circuits = 8Tab Fit = 6.35 mmPackaging Method = Loose PieceColor = RedSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on 8P.FASTIN-ON RC.HSG

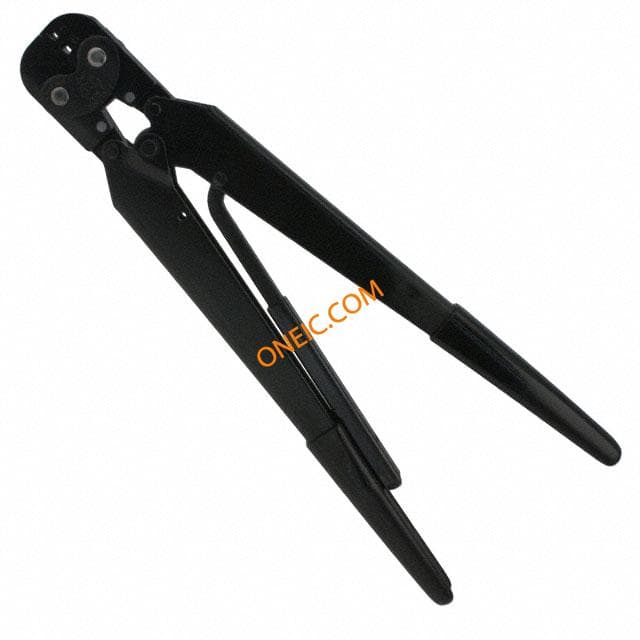

720725-1
