点击放大查看

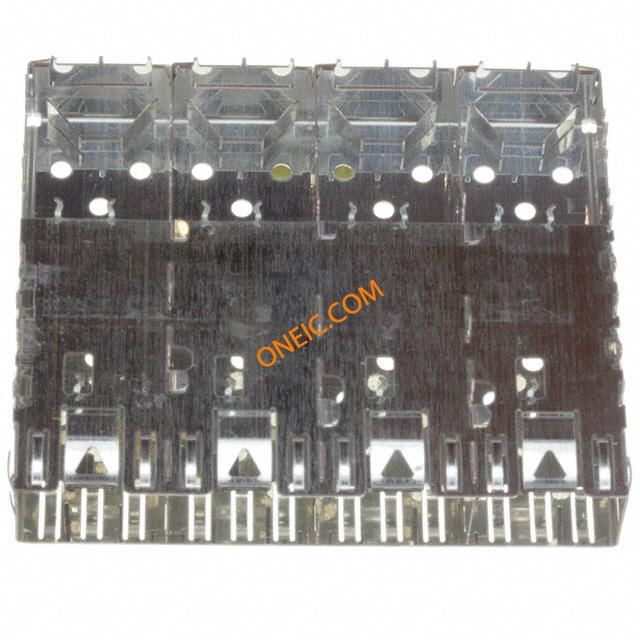

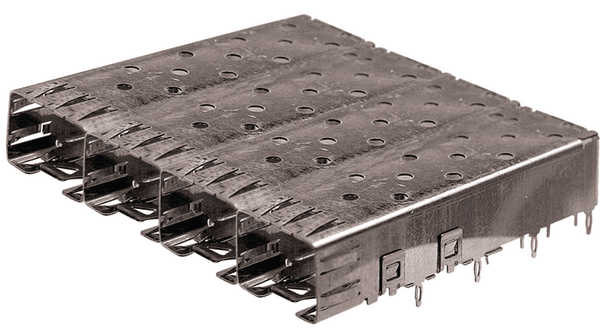

1658744-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 4 Port Press Fit SFP Cage Right Angle Copper Alloy Tin Over Nickel Finish Tray Pluggable Connectors, Cages, Transceivers & Accessories CONN SFP CAGE 1X4 PRESS FIT Cage 20 way ganged 1x4 press fit SFP I/O Connectors 1 X 4 SFP CAGE PRESS FIT Connector Accessories 4 Port SFP Cage Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish Tray Connector Accessories 4 Port SFP Cage Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish Tray Product Highlights:SFP ApplicationCageCage Type = GangedWithout Light Pipe1 x 4 ConfigurationSearch Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO CAGE ASSEMBLY, PRESS-FIT, THT, RA, 4P SFPCageAssembly,Ganged,1x4,PressFit Ganged Cage Assembly 1 x 4 Press Fit SFP SFP cage 1x4P, 1658744-1, TE Connectivity |
| 分类 |
商业参数
| 产品 | Infiniband Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 120 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Tin | 深度 | 50 mm |
| 宽度 | 57.25mm | 高度 | 8.95mm |
| 长度 | 50mm | 重量 | 0.0167 |
| 镀层 | Tin over Nickel Flash | 直径 | Not Required mm |
| 材料（通用） | CopperAlloy | 包装方式 | Tray |
| 发光颜色 | Without | 端接方式 | Press-Fit |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | SFP |
| 接触镀层 | Tin over Nickel | 安装样式 | Single Sided, Double Sided |
| 连接器样式 | Cage, Ganged (1 x 4) | 触头材料 | Copper Alloy |
| 壳体材料 | Copper | 总长度 | 57.25 mm |
| 框架材料 | Copper Alloy | 包装数量 | Tray |
| 端接样式 | Press Fit | 面板尺寸 | 8.95 x 57.25 x 50mm |
| 触点数 | 4 | 端子柱长度 | 2.05 [0.081] |
产品信息
| 类型 | SFP Cage | 连接器性别 | Female |
| 系列 | SFP | 产品特性 | EMI Shielded |
| 卡类型 | Ganged | 制造商全称 | AMP |
| 产品子类型 | Cage | 配置 | 1 x 4 |
| 附件类型 | :Cage | 端口数 | 4 |
| 射频系列/标准 | 1658744 | 适用产品/相关产品 | :SFP Pluggable Connectors |
