首页产品分类连接器解决方案D-Sub连接器1658680-1
1658680-1

点击放大查看

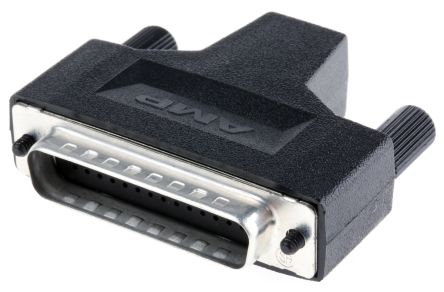

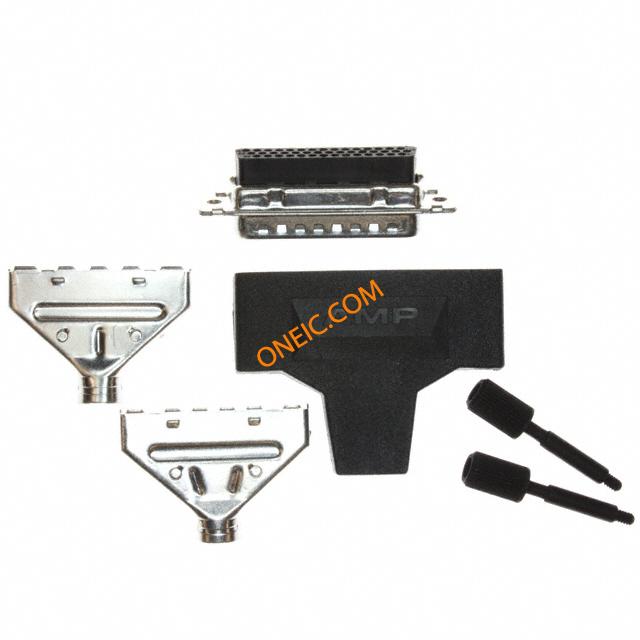

1658680-1

制造商
TE Connectivity Ltd.
描述Conn Housing PL 44 POS Crimp ST Bulk D-Sub High Density Connectors DSUB B44P CRIMP KIT Standard Cable Connectors CONN KIT HD D-SUB PLUG 44POS AMPLIMITE HDP-22 d-sub plug kit, 44 pin D-Sub Standard Connectors DSUB B44P CRIMP KIT Conn Housing PL 44 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-22 (Crimp Snap)44 PositionsShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 3, STEEL Conn;D-Sub;CablePlug;44Pos;STR;HDP-22Series;CrimpSnap;22AWG;ShieldingEncl.Kit TE Connectivity AMPLIMITE HDP-22 44触点 KIT,HDP-22,ENCLSUR,PLUG,SIZE 3
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub High Density Connectors标准包装数量Bulk
工厂包装数量100

合规参数

RoHSRoHS Compliant标准Insert,UL94V-0
海关税号85369010

电气参数

最大额定电流1.9/Contact A最小供电电压250VAC

机械参数

颜色Black高度16 mm
重量0包装方式Bulk
外壳尺寸3导线线规22-28 AWG
端接方式Crimp触头类型Signal
外壳颜色Black安装类型Straight
外壳镀层Tin行程角度Straight
连接器类型Plug for Male Contacts法兰特征Cable Side (4-40)
安装样式Wire排数3
外壳材料（壳体）Steel连接器样式D-Sub, High Density
插入件材料Thermoplastic本体材料:Metal
屏蔽材料Steel壳体材料Steel
总长度56.13 mm主要材料D-Subminiature
端接样式Crimp触点数44
介电材料Polyamide (PA), Nylon, Glass Filled位数44
外壳尺寸-插件:3外壳镀层厚度200µin (5.08µm)
外壳材料及表面处理Steel, Tin Plated外壳尺寸，连接器布局3 (DB, B) High Density

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列:AMPLIMITE HDP-22
产品特性Backshell, Grounding Indents, Shielded制造商全称HDP-22
适用产品/相关产品:HDP-22 Crimp Snap Contacts

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
1658680-1?RQPN=1658680-1
PDF 文档
1639165.pdf
