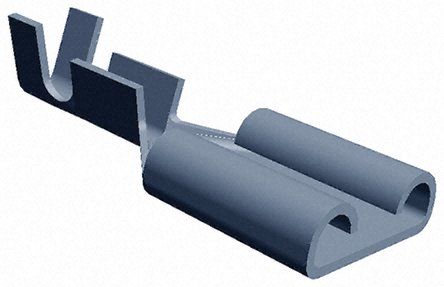

160915-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 17-20AWG RCP 19mm 7.6mm Tin Strip Terminals FAST STECKH 6 3 RAD FASTON Uninsulated Receptacles & Housings CONN UNINS RECPT 17-20AWG 0.250 Receptacle terminal FASTON (REEL) Receptacle terminal,FASTON 250,AWG 20-17 Quick Disconnect Terminal 17-20AWG RCP 19mm 7.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Receptacleterminal,FASTON250,AWG20-17 TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FASTON 250 REC 0.5-1.0 MM2 TPPHBZ |
| 分类 |
商业参数
| 产品 | Faston Terminals | 标准包装数量 | 10,000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 19mm |
| 材料（通用） | Bronze | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Stranded |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.303" (7.70mm) |
| 导线线规 | 17-20 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 释放力 | 8.1 |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 1mm² | 电缆材料 | Stranded |
| 连接器类型 | Power Connector | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | Tab-Lok | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 操作力 | 80 |
| 触头材料 | Phosphor Bronze | 总长度 | Premier |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | 母端 |
| 适用端子尺寸 | 1.4 – 2.3 mm [ .055 – .091 in ] | 绝缘直径 | 1.40-2.31 [.055-.091] |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 接触镀层厚度 | 100 |
| 线规或范围 - AWG | 17AWG | 线规或范围 - mm² | 0.50-1.00² [20-17] |
| 第二连接器安装特性 | No | 外径-未扩张 | 2.3 mm [ .091 in ] |
产品信息
| 类型 | Receptacle, Faston | 连接器性别 | Female |
| 系列 | 0.250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
