点击放大查看

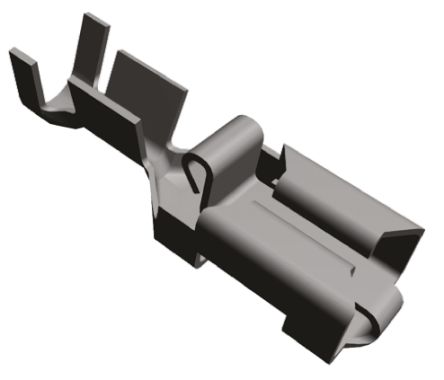

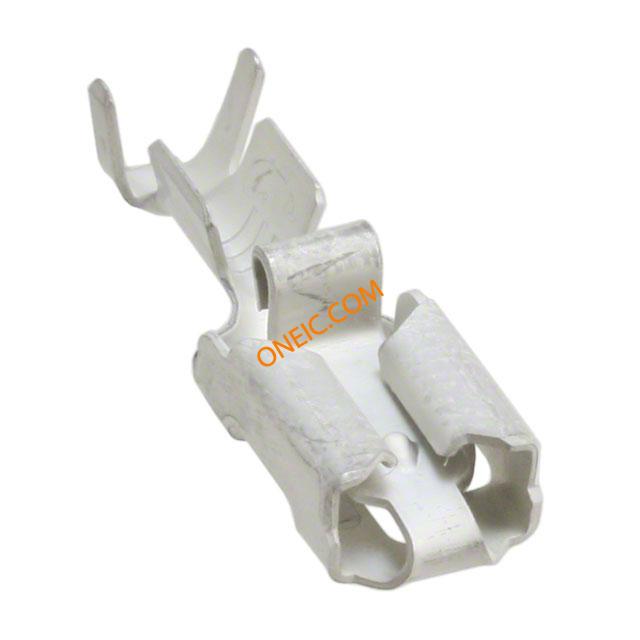

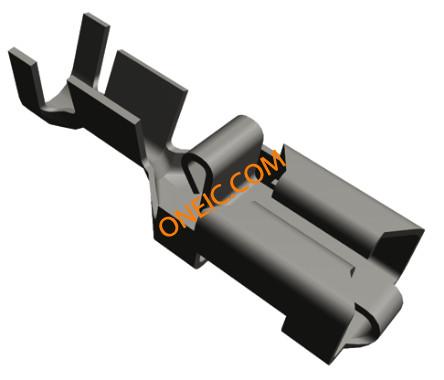

160831-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG RCP Tin Strip Automotive Connectors POSITIVE LOCK RECPT Positive Lock Connectors CONN RCPT POS LOCK 17-13.5AWG Positive lock,receptacle,17-13awg,6.35mm Quick Disconnect Terminal 13-17AWG RCP Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightWire Range = 1.00-2.50² [17-13.5] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONTACT, CRIMP, RECAPTACLE, 17-13AWG POSLOCK,FEM,6.35X0.81 TE Connectivity Positive Lock .250 Mk I 系列 压接插座 , 6.35 x 0.8mm, 镀锡触芯 PL REC 1.0-2.5 MM2 .0160 X 2.060 TPPHBZ |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A99664CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | 1,500 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 表面处理 | Tin | 长度 | 22.3 mm |
| 重量 | 0.005 | 材料（通用） | Phosphor Bronze |
| 按键颜色 | None | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 绝缘类型 | Not Insulated | 导线线规 | 13.5-17 AWG |
| 端接方式 | Crimp | 安装类型 | Straight |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 安装样式 | Wire | 连接器样式 | Straight |
| 触头材料 | Phosphor Bronze | 总长度 | Mark I |
| 包装数量 | Strip | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 接触件端接 | :Crimp |
| 绝缘直径 | 3.00-4.29 [.118-.169] | 线规或范围 - AWG | 17-13 |
| 线规或范围 - mm² | 1.00-2.50² [17-13.5] | ||
产品信息
| 备注 | FLK-Wire: Normal Wire | 连接器性别 | Female |
| 系列 | .250 | 编码、键控 | No |
| 产品子类型 | Receptacle | 适用产品/相关产品 | :Positive Lock Connectors |
文档与媒体
相关型号
926646-1
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Conn Housing RCP 8 POS 9.1mm Crimp ST Product Highlights:HousingHousing Type = Housing - TabTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
100100-1
te connectivity / amp
Conn Housing RCP 2 POS 6.3mm Crimp ST Positive Lock Connectors CONN RCPT 2POS W/POSITIVE LOCK Headers & Wire Housings 02P RECPT HSG Positive Lock Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = ReceptacleTab Fit = 6.35 mmSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
926646-3
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST CONN RCPT HSG 8POS .250 NATURAL Headers & Wire Housings 8P POS-LOCK GEH 6,3
154719-2
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 RED Positive lock plug housing,1 way,6.35mm Automotive Connectors BOOT/INSULATOR F. POSLOK TERM Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RED, 1WAY Positivelockplughousing,1way,6.35mm PL 250 REC HSG 1P NYLON RED
154719-4
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 YELLOW Housing 1way Rec 6.35mm Yellow Posi-Lock Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING1WAYREC6.35MM TE Connectivity Positive Lock 系列 1 触点 尼龙 压接端子外壳 PL 250 REC HSG 1P NYLON YELLOW

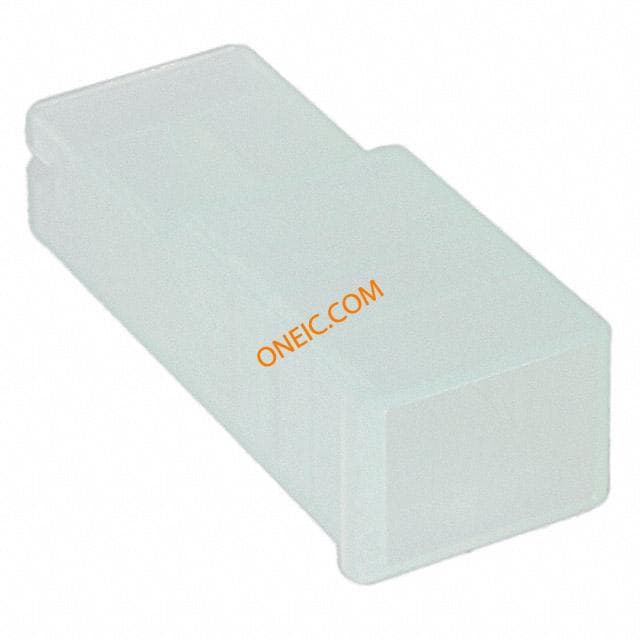

1-154719-0
