点击放大查看
160831-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG F 22.3mm 7.4mm Reel Positive Lock Connectors CONN UNINS RCPT 13.5-17AWG 0.250 Headers & Wire Housings POSITIVE LK REC MKI Quick Disconnect Terminal 13-17AWG F 22.3mm 7.4mm Reel Product Highlights:ContactContact Type = ReceptacleTab Fit = 6.35 x 0.81 mmLine = Mark IReceptacle Style = StraightSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL REC 1.0-2.5 MM2 .0160 X 2.060 BR |
| 分类 |
商业参数
| 标准包装数量 | 12,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 核心类型 | Open | ||
机械参数
| 颜色 | Not Required | 深度 | 7.4 mm |
| 表面处理 | None | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | 分离式导线 | 绝缘类型 | Non-Insulated |
| 导线线规 | 13.5-17 AWG | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 释放力 | .7 – 10.2 | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | No | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 低 |
| 操作力 | 7 – 100 | 触头材料 | Brass |
| 总长度 | Mark I | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 适用端子尺寸 | 3.01 – 4.3 mm [ .12 – .169 in ] |
| 绝缘直径 | 3.00-4.29 [.118-.169] | 绝缘材料 - 类型 | No |
| 总厚度 | .41 mm [ .016 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 1.00-2.50² [17-13.5] |
| 外径-未扩张 | 4.3 mm [ .169 in ] | ||
产品信息
| 备注 | FLK-Wire: Normal Wire | 连接器性别 | Female |
| 编码、键控 | No | 产品子类型 | Receptacle |
文档与媒体
相关型号
926646-1
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Conn Housing RCP 8 POS 9.1mm Crimp ST Product Highlights:HousingHousing Type = Housing - TabTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightSearch Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
365016-1
te connectivity / amp
Conn Housing RCP 8 POS ST Positive Lock Connectors CONN RCPT HSG 8POS .250 BLACK Headers & Wire Housings 8P POSITIVE- LOCK RECEP HSG Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 8Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110,
926646-3
te connectivity / amp
Conn Housing RCP 8 POS 9.1mm Crimp ST CONN RCPT HSG 8POS .250 NATURAL Headers & Wire Housings 8P POS-LOCK GEH 6,3
154719-2
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 RED Positive lock plug housing,1 way,6.35mm Automotive Connectors BOOT/INSULATOR F. POSLOK TERM Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING, RED, 1WAY Positivelockplughousing,1way,6.35mm PL 250 REC HSG 1P NYLON RED
154719-4
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HSG 1POS .250 YELLOW Housing 1way Rec 6.35mm Yellow Posi-Lock Conn Housing RCP 1 POS Crimp ST Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = Mark IReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, HOUSING1WAYREC6.35MM TE Connectivity Positive Lock 系列 1 触点 尼龙 压接端子外壳 PL 250 REC HSG 1P NYLON YELLOW

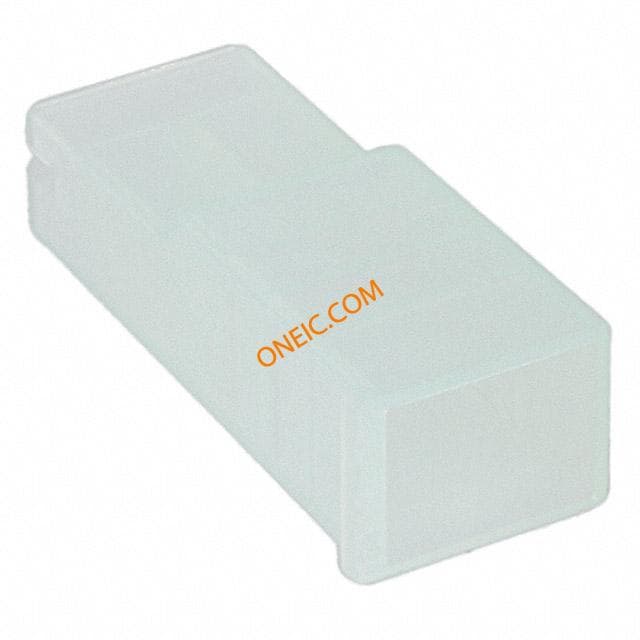

1-154719-0
