1586493-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Headers & Wire Housings 08P DUAC 94V0 W/PEG WO/DH LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 8POS VERT PCB TIN Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 2,160 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | White | 间距 | 0.165" (4.20mm) |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 排数 | 2 | 位数 | 8 |
| 接触镀层厚度 | 118.1µin (3.00µm) | ||
产品信息
| 类型 | Shrouded | 系列 | AMP-DUAC |
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 加载位置数 | All | ||
相关型号
106527-8
te connectivity / amp
Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 8POS W/POSTIVE LOCK Headers & Wire Housings 08P REC HSG 94V-2 AMP-DUAC 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions8 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power DUACHousing;8PositionReceptacle 08P DUAC REC HSG

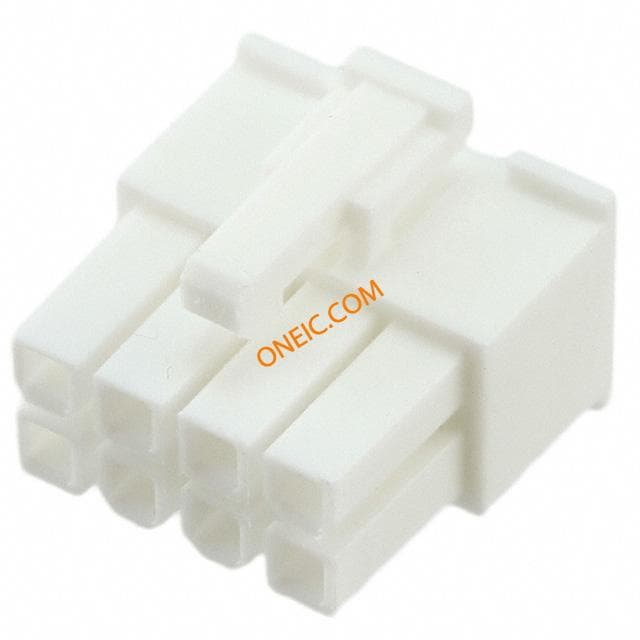

794657-8
te connectivity / amp
Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT HOUSING 8POS 94V-0 Pin & Socket Connectors 08P RCPT HSG 94V-0 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions8 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 08P RCPT HSG 94V-0
