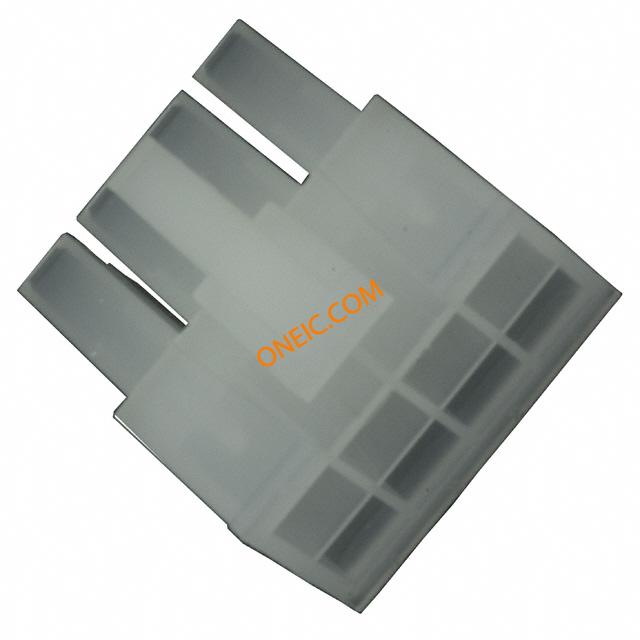

106527-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 8POS W/POSTIVE LOCK Headers & Wire Housings 08P REC HSG 94V-2 AMP-DUAC 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions8 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power DUACHousing;8PositionReceptacle 08P DUAC REC HSG
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1065278	标准包装规格	1
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	零件状态	E28476
标准编号	CSA, UL	UL阻燃等级	UL 94V-2
认证机构标志	是	材料阻燃等级	UL94V-2

电气参数

额定电压	600 V	供电电压	600
中心频率	带有	最大额定电流	9 A

机械参数

颜色	Natural	间距	4.2 mm
宽度	11.7 mm [ .46 in ]	高度	18.8 mm [ .74 in ]
长度	18.1 mm [ .71 in ]	密封型	Not Sealed
包装方式	Bulk	导线线规	18-26 AWG
排间距	0.165" (4.20mm)	触头类型	Female Socket
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	接触镀层	Without
紧固类型	Latch Lock	排数	2
封装形式	Receptacle	插入力	4
壳体材料	Nylon	总长度	0.71"
包装数量	1	主要材料	InterconnectSystem
插针孔直径	0.165"	端接样式	插座
第一触头极性	Socket (Female)	触点数	8
接触件端接	Crimp	位数	8

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMP-DUAC
制造商全称	AMP-DUAC(DualAction)	产品子类型	Receptacles / Sockets - Housings

环境参数

测试温度

标准件 - 非灼热丝

工作温度

-55 – 105 °C [ -67 – 221 °F ]
