点击放大查看

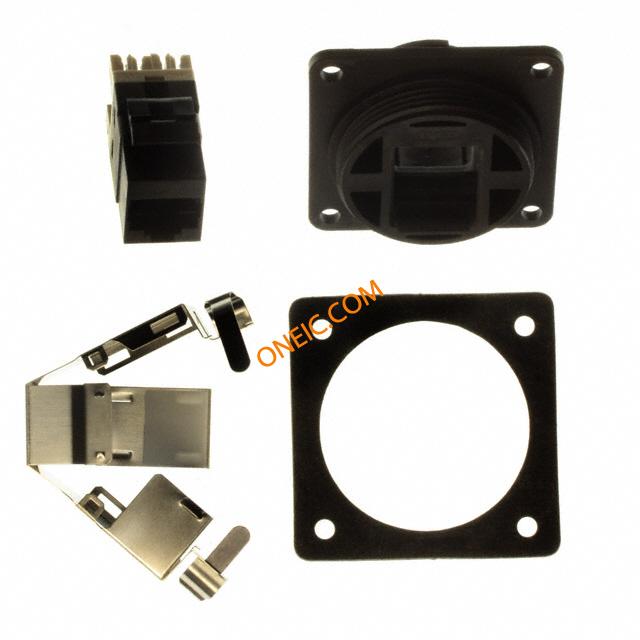

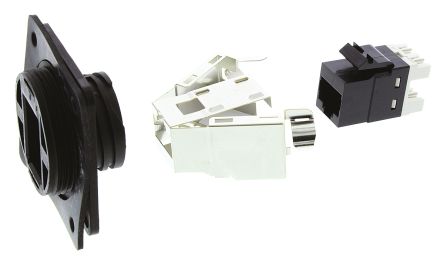

1546908-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 RCP 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Cat 5 CPC Series 45 Ethernet CONN MOD JACK 8P8C SHIELDED Female Square Flange Panel Mount Field RJ45 Connector, LAN Category Cat5, Cat5e,Diameter 33.78mm Modular Connectors / Ethernet Connectors RECEPTACLE KIT SHEILDED Conn RJ-45 RCP 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Cat 5 Product Highlights:Housing Gender = ReceptacleShieldedWire Termination = YesSearch Keywords:CPC (Circular Plastic Connector) Series 45 Ethernet, RJ45/RJ45, Category 5, Category 5e, Ethernet SOCKET, RJ45, SHIELDED, IP67 ReceptacleKit,IndustrialEthernet,WireTerminated,CPCSeries45,Shielded Socket; RJ45; CPC; PIN:8; Cat:5e; shielded; Pin layout:8p8c; IP67 方形法兰 面板安装 RJ45 插座 母, Cat5，Cat5e, 33.78mm直径 CPC RCP ASSY,IND ETHERNET,SHLD |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 以太网 | Cat 5e | 连接器类型 - 电压输入 | Cat5, Cat5e |
机械参数
| 长度 | 52.02mm | 重量 | 0.06 |
| 直径 | 33.78mm | 材料（通用） | UL94V-0Housing |
| LED颜色 | Does Not Contain LED | 包装方式 | Bulk |
| 屏蔽 | Shielded | 方向 | Straight |
| 屏蔽类型 | Yes | 端接方式 | Crimp |
| 安装类型 | Panel Mount | 卡扣方向（或“接线片方向”） | User Selectable |
| 连接器类型 | Jack | 接触镀层 | :- |
| 安装样式 | Cable | 排数 | 1 |
| 锁定特性 | threaded joint | 触头材料 | :- |
| 包装数量 | 10 | 主要材料 | ReceptacleKit |
| 导线端接方式 | Yes | 连接器 - 电缆 | socket |
| 触点数 | :8 | 接触件端接 | :IDC / IDT |
| 位数 | 8 | 第一连接器安装类型 | :Panel |
| 第一连接器安装特征 | 8p8c | ||
产品信息
| SPG | 10 | 类型 | RJ-45 |
| 连接器性别 | RCP | 系列 | :CPC |
| 产品特性 | Circular Threaded Coupling, Strain Relief | USOC 编码 | RJ45 |
| 插座类型 | Square Flange | 制造商全称 | CPCSeries45 |
| 产品子类型 | Receptacle Assembly | 适配器系列 | CPC |
| 端口数 | 1 | 单元数量 | 1 |
| 性能类别 | Cat 5e | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
| 适用产品/相关产品 | Category5and5eCables | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -55 â +105 |
