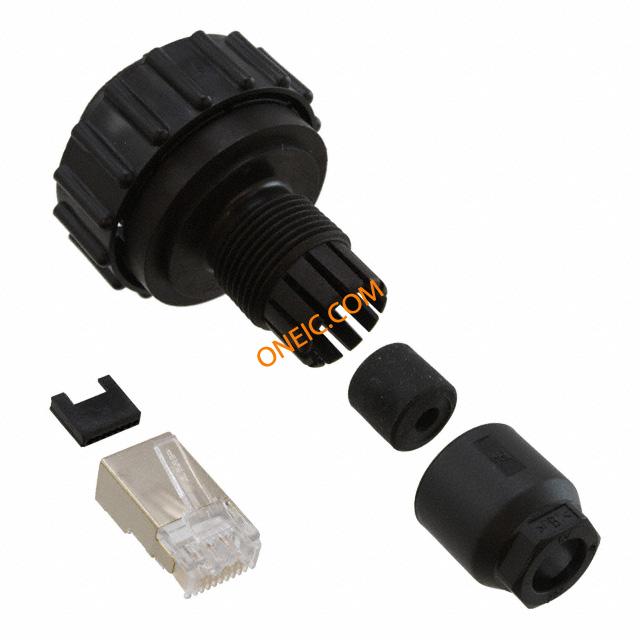

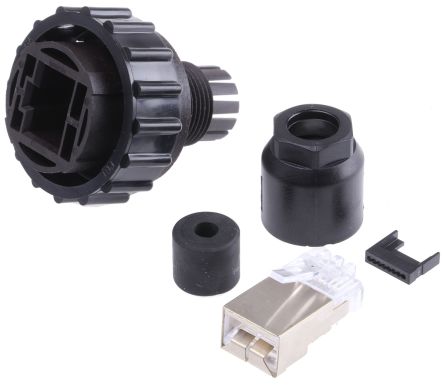

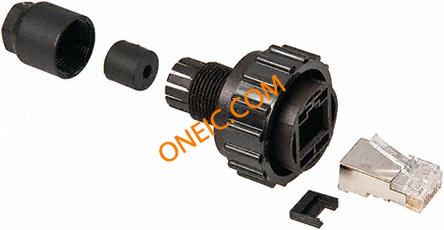

1546907-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Cat 5 CPC Series 45 Ethernet CONN MOD PLUG 8P8C SHIELDED Cable Plug lock ring IP67 RJ45 Modular Connectors / Ethernet Connectors PLUG KIT SHEILDED Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Cat 5 Product Highlights:Connector Style = PlugShieldedWire Type = SolidSearch Keywords:CPC (Circular Plastic Connector) Series 45 Ethernet, RJ45/RJ45, Category 5, Category 5e, Ethernet PLUG, RJ45, SHIELDED, IP67 CABLEPLUGLOCKRINGIP67 Plug; RJ45; CPC; PIN:8; Cat:5e; shielded; Pin layout:8p8c; IP67 CPC Series 45 Ethernet系列 连接器封套, 外壳尺寸9, 33.78mm直径, 使用于工业以太网产品, -55 → +105 °C CPC PLG ASSY,IND ETHERNET,SHLD,SLD WR |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 以太网 | Cat 5e | 连接器类型 - 电压输入 | wire |
机械参数
| 颜色 | Translucent - Clear | 深度 | 33.78 mm |
| 高度 | 33.78 mm | 长度 | 2.048" (52.02mm) |
| 重量 | 0.06 | 直径 | 33.78mm |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 导线类型 | Solid | 电缆类型 | Round Cable, Solid Wires |
| 外壳尺寸 | 9 | 屏蔽类型 | Yes |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 连接器类型 | :RJ45 | 接触镀层 | :- |
| 安装样式 | Cable | 锁定特性 | threaded joint |
| 触头材料 | :- | 包装数量 | 10 |
| 连接器 - 电缆 | plug | 触点数 | 8 POS |
| 接触件端接 | :IDC / IDT | 位数 | 8 |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 8p8c |
产品信息
| SPG | 10 | 类型 | RJ-45 |
| 连接器性别 | PL | 系列 | CPC Series 45 Ethernet |
| 产品特性 | Circular Threaded Coupling | USOC 编码 | RJ45 |
| 产品子类型 | Plug Assembly | 适配器系列 | CPC |
| 类别编号 | Cat 5 | 端口数 | 1 Port |
| 单元数量 | 1 | 射频系列/标准 | 1546907 |
| 性能类别 | Cat 5e | 加载位置数 | 8 |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | 适用产品/相关产品 | Industrial Ethernet Products |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -55 â +105 | ||
