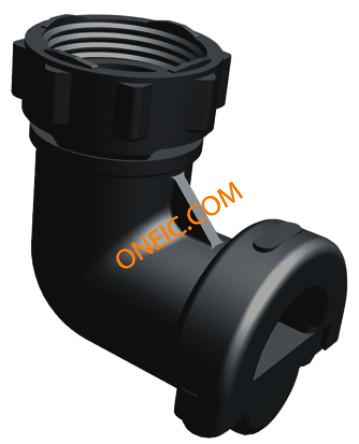

点击放大查看
1546746-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Strain Relief Thermoplastic Shell Size 11 Standard Circular Connector R/A CABLE CLAMP KIT SIZE 13 CPC Miniature CPC (Circular Plastic Connector) STRAIN RELIEF KIT R/A SHELL 11 TE Connectivity Black Nylon Cable Clamp Connector Accessories Strain Relief Thermoplastic Shell Size 11 Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector CIRCULAR CABLE CLAMP, R/A, SZ 11, PLASTIC Kit,CableClamp;CircularPlastic;11;RightAngle;Black(StrainRelief) Miniature CPC 9 Position (Size 11) Right Angle Strain Relief TE Connectivity 黑色 尼龙 电缆夹, 1.65 x 1.01 x 1.66mm R/A CABLE CLAMP KIT,SZ 11, MINI CPC |
| 分类 |
商业参数
| 商标名 | CPC Miniature | 其他名称 | A34531 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 深度 | 1.66mm |
| 宽度 | 1.01 mm | 长度 | 1.65mm |
| 重量 | 0 | 材料（通用） | Nylon |
| 外壳尺寸 | 11 | 应变范围（增益可调） | Right Angle |
| 安装类型 | Screw | 外壳材料（壳体） | Thermoplastic |
| 电缆端接方式 | Cable Clamp | 连接器颜色 | Black |
| 外壳尺寸-插件 | 11 | 绝缘材料 - 材质 | Thermoplastic |
| 外径-未扩张 | :0.453" | ||
产品信息
| 备注 | With Cover; Screw finish is zinc plated non-hexavalent chromate | 类型 | Strain Relief |
| 系列 | Mini CPC | 产品特性 | Assembly Kit, Cover |
| 产品子类型 | Cable Clamp / Backshells | 附件类型 | Strain Relief |
| 射频系列/标准 | 1546746 | 适用产品/相关产品 | Miniature CPC |
