1469334-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Backplane PL 40Signal/10Ground POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM Zd HM ZD 2PR HEADER, SEQUENCED |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 最大额定电流 | 0.700A | ||
机械参数
| 间距 | 2.5 mm | 长度 | 24.9 |
| 包装方式 | Tube | 端接方式 | Press Fit |
| 触头类型 | Pin | 安装类型 | Through Hole |
| 电缆间距 | 20.3 | 连接器类型 | Header |
| 接触镀层 | Gold | 排数 | 5 |
| 连接器样式 | High Speed | 连接器用途 | Backplane |
| 屏蔽材料 | Phosphor bronze | 壳体材料 | Polyester GF |
| 主要材料 | Phosphor Bronze | 触点数 | 40Signal/10Ground |
| 端接表面处理 | Tin-Lead over Nickel | 接触件端接 | Through Hole |
| 位数 | 40 | 中心触点表面处理 | 2.5 |
| 电缆对数 | 20.0 | 柱体长度（配合） | 2.5 |
| 典型触点布局 | ACTION PIN Post | 接触长度 - 配合 | 2.95 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Backplane | 带定序器 | Yes (See Drawing) |
| 制造商全称 | AMP | 产品子类型 | No |
| 列数 | 2.0 | 选择性装载 | Yes |
| 加载位置数 | All | 转换前位置数 | 10 |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
文档与媒体
相关型号

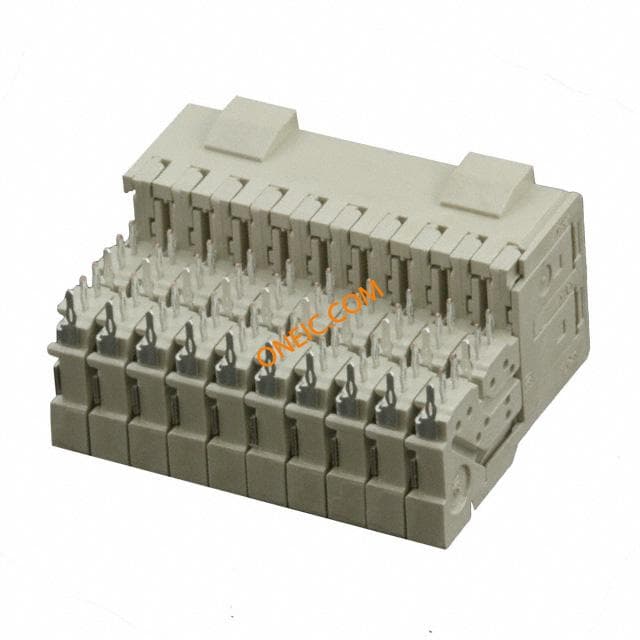

6469028-1
