点击放大查看

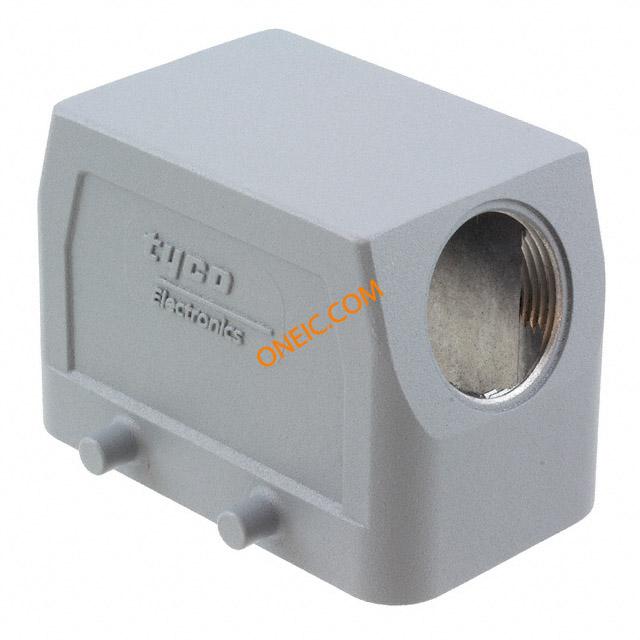

1106430-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece HTS Connectors and Accessories CONN HOOD HB.10.STS.1.M25.G HE Connector, Hood HB.10.STS.1.M25.G Heavy Duty Power Connectors HB HOOD SIZE 4 M25 Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTOR,HOODHB.10.STS.1 TE Connectivity HB 系列 电源连接器外壳 HB.10.STS.1.M25.G |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 频率 | Locking Clip on Base Bottom | ||
机械参数
| 尺寸 | 4 | 颜色 | 灰色 |
| 深度 | 43 mm | 宽度 | 43 mm [ 1.69 in ] |
| 表面处理 | Silver Gray | 高度 | 50 mm |
| 长度 | 73 mm [ 2.88 in ] | 材料（通用） | Die Cast Aluminum |
| 锁定类型 | 壳体底部 | 包装方式 | Bulk |
| 螺纹尺寸 | M25 | 外壳表面处理 | Powder Coated |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 连接器类型 | Hood | 外壳涂层 | Powder Coated |
| 连接器样式 | Side | 锁定特性 | Locking Clip at Housing Bottom |
| 壳体材料 | Aluminum Alloy, Die Cast | 总长度 | 73 mm |
| 包装数量 | Loose Piece | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 2.874" L x 1.693" W x 1.969" H (73.00mm x 43.00mm x 50.00mm) | 外壳尺寸-插件 | 是 |
| 总体尺寸 | 73.0 x 50.0 x 43.0 [2.88 x 1.97 x 1.69] | AC输出连接器 | 侧 |
| 外部壳体颜色 | Gray | ||
产品信息
| 类型 | Hood | 样式 | Side Entry |
| 系列 | HB | 产品子类型 | Hood |
| 锁定位置 | Locking Clip on Base Bottom | 附件类型 | Hood |
| 射频系列/标准 | 1106430 | ||
环境参数
| 液体防护 | No | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 耐磨防护 | 否 | ||
