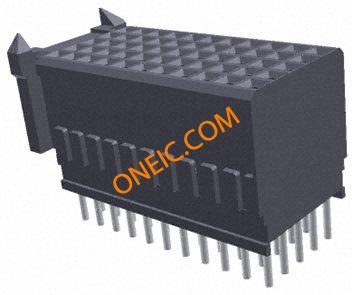

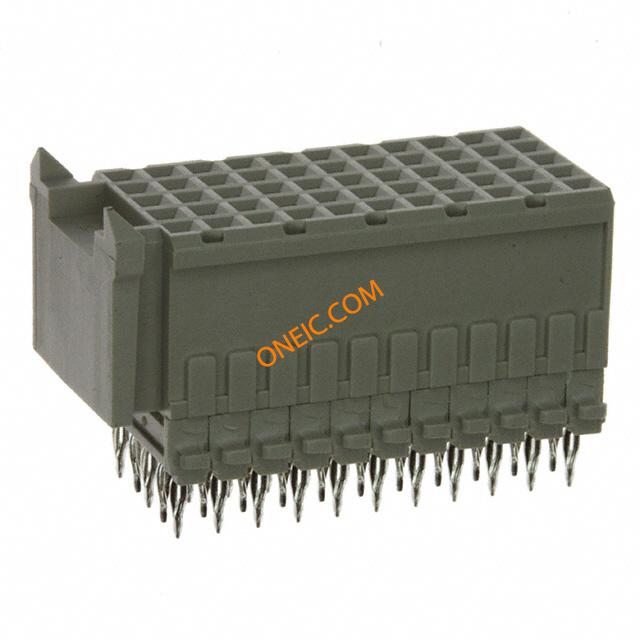

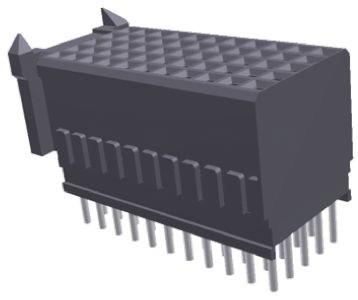

106775-1

点击放大查看

106775-1

制造商
TE Connectivity Ltd.
描述Conn Hard Metric RCP 55 POS 2mm Solder ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 55 POS VERT 2MM PCB Z-Pack,Receptacle,Type C,vertical,55way Conn Hard Metric RCP 55 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Type CReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/CF.HDR.55P TE Connectivity Z-PACK HM 系列 2mm 节距 55 路 直向 5 排 母 背板连接器, 焊接端子
分类
连接器解决方案背板连接器背板连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

标准包装数量Trays

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS/Not ELV Compliant材料阻燃等级UL 94V-0

电气参数

串扰Standard接口2mm HM
额定电压500V最大额定电流1.5A

机械参数

间距2 mm包装方式Tube
方向直屏蔽类型No
端接方式Solder触头类型Short Tail
外壳颜色Gray安装类型Through Hole
连接器类型Type C接触镀层Gold Over Nickel
排数5连接器样式C 11
连接器用途Backplane触头材料Phosphor Bronze
壳体材料Polyester GF总长度25.00 [0.984]
端接排数焊接配接方向Without
触点数55端接表面处理Tin-Lead over Nickel
位数55柱体长度（配合）3.71 [0.146]
接触镀层厚度30µin (0.76µm)后壳材料及镀层硬公制 C 型

产品信息

类型Hard Metric连接器性别Receptacle
系列Z-PACK HM制造商全称AMP
产品子类型Connector模块/板类型No
列数11加载位置数All

环境参数

工作温度-55°C ~ 125°C

文档与媒体

在线文档
106775-1
