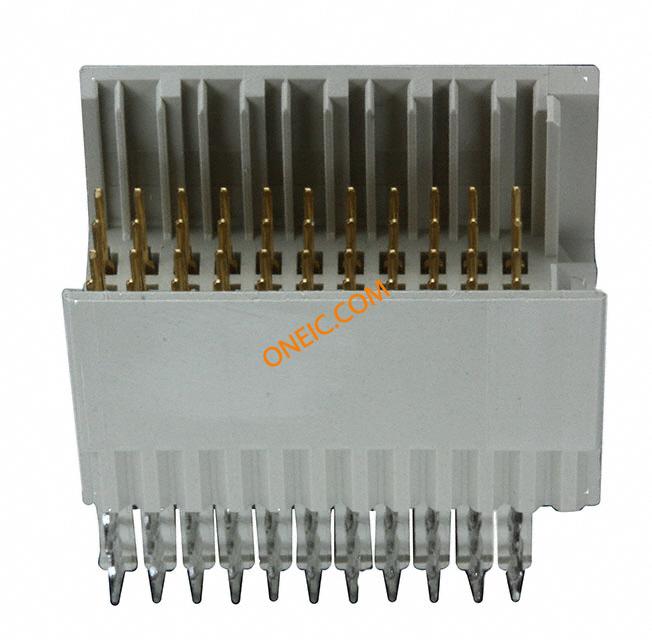

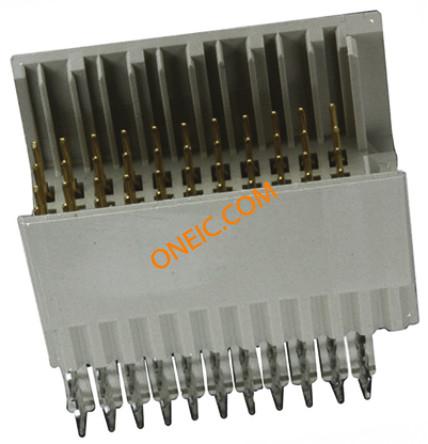

106012-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric PL 55 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER R/A 55 POS 2MM PCB Z-PACK Hard Metric C Plug Right Angle55P Hard Metric Connectors Z-PACK/C M-HDR 55P Conn Hard Metric PL 55 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type CPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 55POS Z-PACK/CRAMH.55P. Z-PACK/C RAMH. 55P. |
| 分类 |
商业参数
| 其他名称 | 1060121 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 22 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 最大额定电流 | 1.5A | ||
机械参数
| 间距 | 2 mm | 重量 | 0 |
| 包装方式 | Tray | 屏蔽类型 | No |
| 端接方式 | Solder | 触头类型 | Short Tail |
| 柱间距 | :2mm | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type C |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 5 | 连接器样式 | C 11 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 前部连接器 | Level 1 | 壳体材料 | Polyester GF |
| 总长度 | 25.00 [0.984] | 端接样式 | Press Fit |
| 配接方向 | Without | 触点数 | 55 |
| 端接表面处理 | Tin-Lead over Nickel | 接触件端接 | :Press Fit Right Angle |
| 位数 | 55 | 柱体长度（配合） | 3.71 [0.146] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | Warning: Card extender male connectors should not be used with cable connectors | 类型 | Hard Metric |
| 连接器性别 | Plug | 系列 | Z-PACK |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 模块/板类型 | No | 加载位置数 | All |
