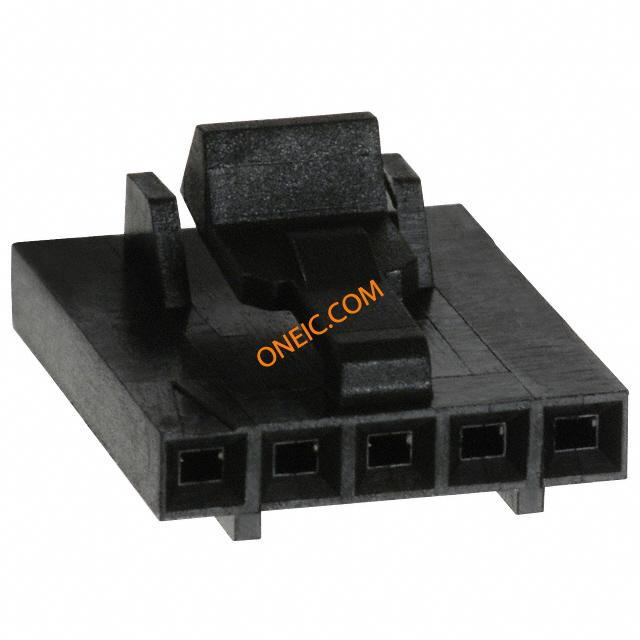

104257-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 5 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 5POS .1" POL UNLOAD 5 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 5P Conn Housing RCP 5 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 5WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:5; w/o terminals; 2.54mm; for cable TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 5 路 直 母 PCB 壳体 05 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU MTE Series | 最大额定电流 | 3/Contact A |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 长度 | 12.64mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 外壳样式 | Receptacle | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 引脚间距 | :2.54mm |
| 柱间距 | 2.54mm | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | :- |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | Receptacle |
| 锁定特性 | lock | 触头材料 | :- |
| 壳体材料 | Thermoplastic | 总长度 | 12.64 mm |
| 包装数量 | 1 | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | plug | 插针孔直径 | 0.1" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
| 中心触点材料 | 2.54 [.100] | 第一连接器安装特征 | 1x5 |
产品信息
| SPG | 1 | 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | MTE | 预加载 | No |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | Housing |
| 适配器系列 | AMPMODU MTE | 单元数量 | 1 |
| 矩阵（列×行） | 0.100in. | 适用产品/相关产品 | Centerline Single-Row Connector |
环境参数
| 工作温度 | -65C to 105C | ||
