点击放大查看

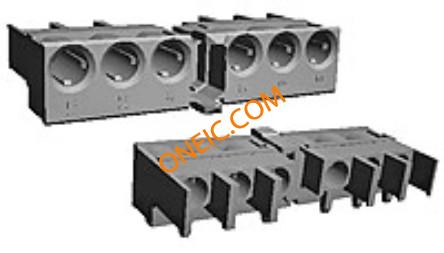

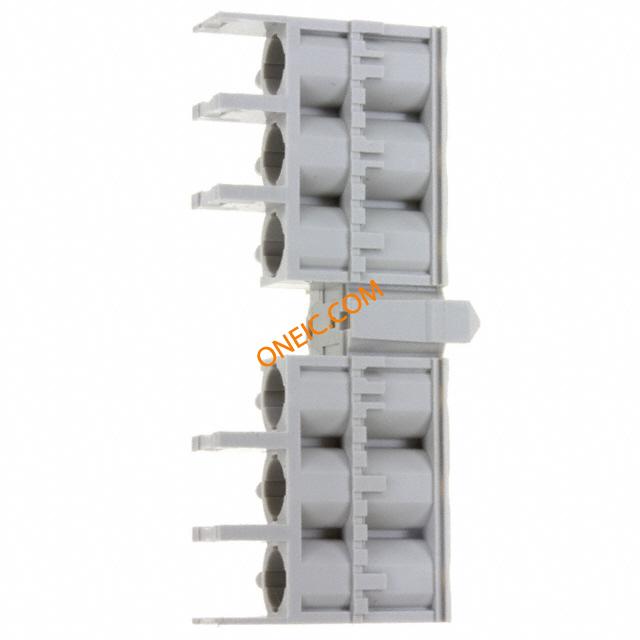

100746-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS Crimp ST Cable Mount 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HOUSING FMALE RTANG DIN RA 2mm PCB Type L Housing Hard Metric Connectors 2MM FEMALE TYPE L Conn Housing RCP 6 POS Crimp ST Cable Mount Product Highlights:HousingConnector Type = Type LReceptacleInterface Type = 2mm HMContact Type = DINSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| 分类 |
商业参数
| 其他名称 | 1007461 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 11 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | 2mm HM | ||
机械参数
| 颜色 | Gray | 深度 | 23.3mm |
| 长度 | 49.9mm | 包装方式 | Bulk |
| 屏蔽类型 | No | 触头类型 | DIN |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Straight | 连接器类型 | Type L |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器样式 | Hard Metric, Type L | 连接器用途 | Receptacle |
| 壳体材料 | PBT - GF | 总长度 | 50.00 [1.968] |
| 端接样式 | Press Fit | 配接方向 | With |
| 触点数 | 6 | 位数 | 6 (Fiber Optics or Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Z-Pack |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 核心数 | 6 | 模块/板类型 | No |
