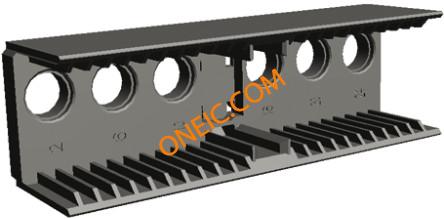

点击放大查看
100745-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6Coaxial POS Crimp ST Bulk 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM PLUG HOUSING 6DIN VERT Housing 6 way coax pcb 2mm Z-Pack Hard Metric Connectors 2MM HM HYBD MALE Conn Housing PL 6Coaxial POS Crimp ST Bulk Product Highlights:HousingConnector Type = Type LPlugInterface Type = 2mm HMContact Type = DIN Housing6waycoaxpcb2mmZ-Pack TE Connectivity Z-PACK HM 系列 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | 2mm HM | ||
机械参数
| 颜色 | Gray | 间距 | 2 mm |
| 包装方式 | Bulk | 屏蔽类型 | No |
| 触头类型 | DIN | 极化 | Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 连接器类型 | Type L | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器样式 | Hard Metric, Type L | 连接器用途 | Plug |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 主要材料 | LConnector | 配接方向 | With |
| 触点数 | 6Coaxial | 位数 | 6 (Fiber Optics or Power) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Z-Pack |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 核心数 | 6 | 模块/板类型 | No |
| 适用产品/相关产品 | PCB Connector | ||
