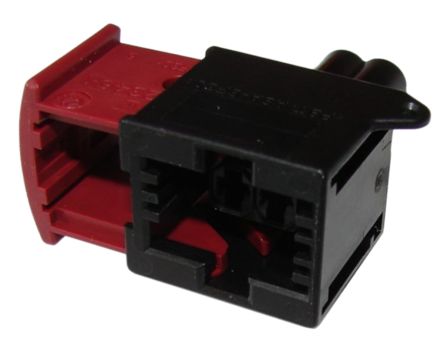

点击放大查看
1-967239-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 5mm Crimp ST Cable Mount Timer Connectors CONN RCPT HSNG 2POS BLACK Automotive Connectors JPT GEH KPL GEH 2P Conn Housing RCP 2 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 2 POSITION TE Connectivity Junior Power Timer 系列 2路 直插式安装 黑色 母 外壳 JPT GEH KPL GEH 2P |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 深度 | 37.75 mm |
| 间距 | 5 mm | 高度 | 21 mm |
| 密封型 | Yes | 重量 | 0.002 |
| 材料（通用） | :PBT-GF 30 | 包装方式 | Bulk |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Junior Power Timer |
| 接触镀层 | :- | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PBT - GF 30 |
| 总长度 | 5.00 [0.197] | 第一触头极性 | :Socket |
| 连接器颜色 | :Black | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 外壳尺寸-插件 | :- | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :JPT |
| 产品特性 | Sealed | 产品子类型 | Receptacle Housing |
